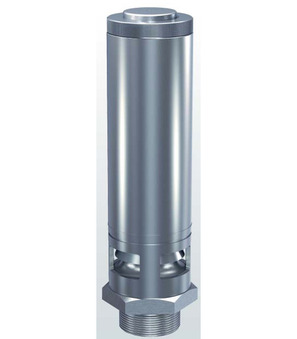

Safety valve Series SV11; With twist lifting; Body 1.4404; Compression spring 1.4310; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Connection 11/4"; DN 31mm; Set pressure 10 bar; Seal NBR; Medium temperature -30…130°C; Incl. TÜV-Inspection certificate EN-10204-3.2;
Country of origin: Germany
Weight: 2.6 Kg
Short Itemnumber: SV1111431103G
Technical specifications
| Connection | 11/4" |
|---|---|
| DN | 31 mm |
| Set pressure | 10 bar |
| Seal | NBR |
| Connection | 11/4" |
| DN | 31 mm |
| Set pressure | 10 bar |
| Seal | NBR |
| Medium temperature | -30...+130 °C |
| Male thread | G 1 1/4" |
SV11-114-31-10-3G
