SV10-15-12.5-9-E
Safety valve DN15/PN16-DN15/PN16-12,5-C-EPDM-EPDM-12
Safety valve DN15/PN16-DN15/PN16-12,5-C-EPDM-EPDM-12
999.999,00 lei
999.999,00 lei
Safety valve DN15/PN16-DN15/PN16-12,5-C-EPDM-EPDM-5,5
Safety valve DN15/PN16-DN15/PN16-12,5-C-EPDM-EPDM-5,5
999.999,00 lei
999.999,00 lei

SV10-15-12.5-9-E

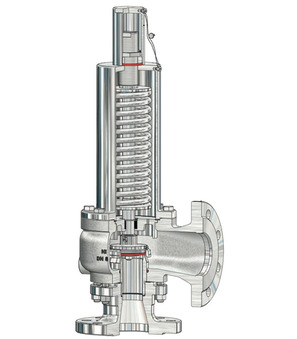

safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN15/PN16; outlet DN15/PN16; DN 12,5mm; valve head C; seat seal EPDM; other seals EPDM; set pressure 9bar

Intrastat No.: 84814010
Country of origin: Germany
Weight: 4.05 Kg
Short Itemnumber:SV101512.59E
https://www.stasto.ro/web/image/product.template/237859/image_1920?unique=da06193

safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN15/PN16; outlet DN15/PN16; DN 12,5mm; valve head C; seat seal EPDM; other seals EPDM; set pressure 9bar

7.117,60 lei 7117.6 RON 7.117,60 lei

Not Available For Sale

  • DN
  • Inlet
  • Outlet
  • Valve head
  • Seat seal
  • Other seals
  • Set pressure

This combination does not exist.

Availability:
Contact Us
dimension
DN 12,5 mm
Inlet DN15/PN16
Outlet DN15/PN16
function
Valve head C
materials
Seat seal EPDM
Other seals EPDM
characteristics
Set pressure 12,5 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Safety valve Series SV10_EN.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Sicherheitsventil Serie SV10_DE.pdf
Download
No spare parts are available for this product.
