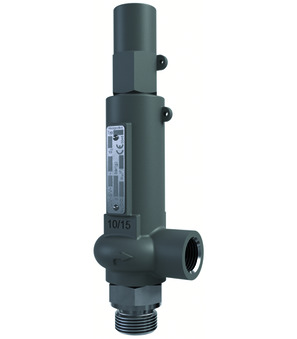

Safety valve SV06-12-10-5-N-3G
Safety valve Series SV06; ATEX zone 0 and 20; Body 1.4571; Cap 1.4581; Gas-proof cover; Inlet male G 1/2"; DN 10mm; Outlet female G 1/2"; Set pressure 5Bar; Seat seal PTFE; Other seals FKM; Incl. TÜV-Inspection certificate EN-10204-3.2 For pressure, function and tightness
Intrastat No.: 84814010
Country of origin: Germany
Weight: 0.958 Kg
Short Itemnumber: SV0612105N3G
Country of origin: Germany
Weight: 0.958 Kg
Short Itemnumber: SV0612105N3G
safety valve series SV06; ATEX zone 0 and 20; body AISI 316Ti; cap AISI 316Ti; gas-proof cover; inlet male G 1/2"; DN 10mm; outlet female G 1/2"; set pressure 5bar; seat seal PTFE; other seals FKM; incl. TÜV-inspection certificate EN-10204-3.2 for pressure, function and tightness
| dimension | |
|---|---|
| DN | 10 mm |
| Inlet male | G 1/2" |
| Outlet female | G 1/2" |
| design | |
| Design | ATEX |
| materials | |
| Seat seal | PTFE |
| Other seals | FKM |
| characteristics | |
| Set pressure | 5 bar |
No spare parts are available for this product.
