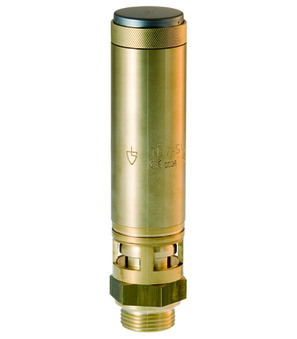

Safety valve 2"-48-0,2...30-5802
Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal FKM; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…+200°C; Possible set pressures In steps of 0,1 bar; G 2"; DN 48mm; Set pressure 0,2...30bar; Discharge capacity at 6bar(g) air 5802Nm3/h
Intrastat No.: 84814090
Country of origin: Germany
Weight: 5.4 Kg
Short Itemnumber:SV022048X
Country of origin: Germany
Weight: 5.4 Kg
Short Itemnumber:SV022048X
safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…+200°C; possible set pressures in steps of 0,1 bar; G 2"; DN 48mm; set pressure 0,2...30bar; discharge capacity at 6bar(g) air 5802Nm3/h
| dimension | |
|---|---|
| Male thread | G 2" |
| DN | 48 mm |
| characteristics | |
| Set pressure | 0,2...30 bar |
| Blow-off capacity at 6 bar air | 5802 Nm3/h |
No spare parts are available for this product.
| dimension | |
|---|---|
| Male thread | G 2" |
| DN | 48 mm |
| characteristics | |
| Set pressure | 0,2...30 bar |
| Blow-off capacity at 6 bar air | 5802 Nm3/h |
No spare parts are available for this product.
