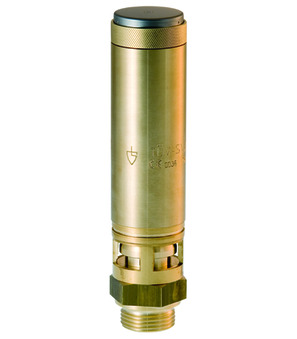

Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal FKM; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20...200°C; G 2"; DN 48mm; Set pressure 24,8bar
Country of origin: Germany
Weight: 5.55 Kg
Short Itemnumber: SV02204824.8
safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20...200°C; G 2"; DN 48mm; set pressure 24,8bar
Technical specifications
| Female thread | G 2" |
|---|---|
| DN | 48 mm |
| Set pressure | 24,8 bar |
| Seal | FKM |
| Female thread | G 2" |
| DN | 48 mm |
| Set pressure | 24,8 bar |
| Seal | FKM |
SV02-20-48-24,8
Documents
Language-independent
CAD / 3D
1-
STP
CADSTEP · SV02204824.8
CAD-STEP 820 KB Updated 27/09/2026
