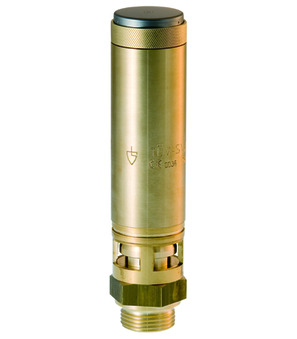

Safety valve SV02-12-14-4-2A
safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20...200°C; incl. test report EN10204-2.2; G 1/2"; DN 14mm; set pressure 4bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.6 Kg
Short Itemnumber: SV02121442A
Country of origin: Germany
Weight: 0.6 Kg
Short Itemnumber: SV02121442A
safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20...200°C; incl. test report EN10204-2.2; G 1/2"; DN 14mm; set pressure 4bar
| dimension | |
|---|---|
| Female thread | G 1/2" |
| DN | 14 mm |
| characteristics | |
| Set pressure | 4 bar |
No spare parts are available for this product.
