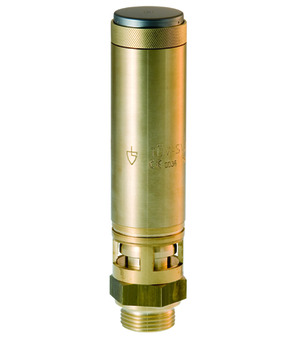

Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal FKM; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20...200°C; G 11/2"; DN 32mm; Set pressure 12bar
Country of origin: Germany
Weight: 1.4 Kg
Short Itemnumber: SV021123212
safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20...200°C; G 11/2"; DN 32mm; set pressure 12bar
Technical specifications
| Female thread | G 1 1/2" |
|---|---|
| DN | 32 mm |
| Set pressure | 12 bar |
| Seal | FKM |
| Female thread | G 1 1/2" |
| DN | 32 mm |
| Set pressure | 12 bar |
| Seal | FKM |
SV02-112-32-12
Documents
Language-independent
CAD / 3D
1-
STP
CADSTEP · SV021123212
CAD-STEP 1023 KB Updated 27/09/2026
