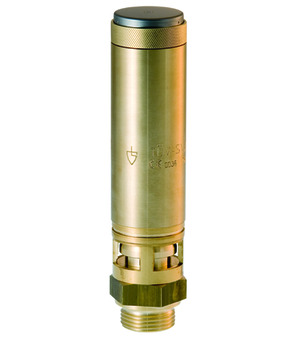

Safety valve SV02-10-24-32-T
Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal PTFE; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -60...225°C; G 1"; DN 24mm; Set pressure 32bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.19 Kg
Short Itemnumber: SV02102432T
Country of origin: Germany
Weight: 1.19 Kg
Short Itemnumber: SV02102432T
safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal PTFE; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -60...225°C; G 1"; DN 24mm; set pressure 32bar
| dimension | |
|---|---|
| Female thread | G 1" |
| DN | 24 mm |
| materials | |
| Seal | PTFE |
| characteristics | |
| Set pressure | 32 bar |
No spare parts are available for this product.
