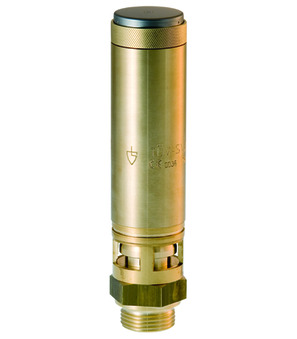

Safety valve SV02-10-24-10-3G

Price.

1.106,20 lei
Safety valve Series SV02-3G Store
  1. Products
  2. Armatures
  3. Pressure regulators, safety valves and accessories
  4. Other materiales - A07
  5. Safety valve Series SV02-3G
  6. SV02-10-24-10-3G
Safety valve SV02-10-24-10-3G
Safety valve SV06-34-12,5-4,3-E-3H
Safety valve SV06-34-12,5-4,3-E-3H
4.140,20 lei
4.140,20 lei
Safety valve 3/4"-12,5-3/4"-0,1-EPDM-EPDM
Safety valve 3/4"-12,5-3/4"-0,1-EPDM-EPDM
4.140,20 lei
4.140,20 lei

Safety valve SV02-10-24-10-3G

Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal FKM; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20...200°C; Incl. TÜV-Inspection certificate EN-10204-3.2; G 1"; DN 24mm; Set pressure 10bar

Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.13 Kg
Short Itemnumber:SV021024103G
https://www.stasto.ro/web/image/product.template/137347/image_1920?unique=c5de58b

safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20...200°C; incl. TÜV-inspection certificate EN-10204-3.2; G 1"; DN 24mm; set pressure 10bar

1.106,20 lei 1106.2 RON 1.106,20 lei

Not Available For Sale

  • Female thread
  • DN
  • Seal
  • Set pressure

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1"
DN 24 mm
materials
Seal FKM
characteristics
Set pressure 10 bar
No spare parts are available for this product.
