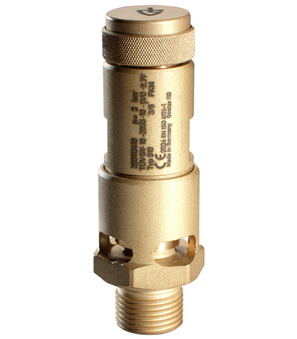

Safety valve SV01-34-16-13-3G
Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -60…225°C; Seal FKM; Connection G 3/4"; DN 16mm; Set pressure 13bar; Incl. TÜV-Inspection certificate EN-10204-3.2
Intrastat No.: 84814090
Country of origin: Germany
Short Itemnumber: SV013416133G
Country of origin: Germany
Short Itemnumber: SV013416133G
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -60…225°C; seal FKM; connection G 3/4"; DN 16mm; set pressure 13bar; incl. TÜV-inspection certificate EN-10204-3.2
| dimension | |
|---|---|
| Male thread | G 3/4" |
| DN | 16 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 13 bar |
No spare parts are available for this product.
