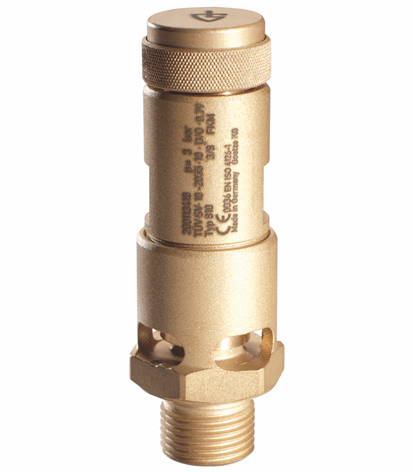

Safety valve SV01-14-7.5-X
Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Seal 0,2...25bar FKM, 25,1...50bar PTFE; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…+200°C; Possible set pressures 0,2...50bar In steps of 0,1 bar; G 1/4"; DN 7,5mm; Discharge capacity at 6bar(g) air 176Nm3/h
Country of origin: Germany
Weight: 0.1 Kg
Short Itemnumber:SV01147.5X
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; seal 0,2...25bar FKM, 25,1...50bar PTFE; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…+200°C; possible set pressures 0,2...50bar in steps of 0,1 bar; G 1/4"; DN 7,5mm; discharge capacity at 6bar(g) air 176Nm3/h
| dimension | |
|---|---|
| Male thread | G 1/4" |
| DN | 7,5 mm |
| characteristics | |
| Blow-off capacity at 6 bar air | 176 Nm3/h |
