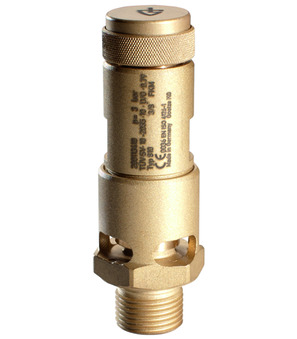

Safety valve SV01-12-11-20-3G
Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -60…225°C; Seal FKM; Connection G 1/2"; DN 11mm; Set pressure 20bar; Incl. TÜV-Inspection certificate EN-10204-3.2
Intrastat No.: 84814090
Country of origin: Germany
Short Itemnumber: SV011211203G
Country of origin: Germany
Short Itemnumber: SV011211203G
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -60…225°C; seal FKM; connection G 1/2"; DN 11mm; set pressure 20bar; incl. TÜV-inspection certificate EN-10204-3.2
| dimension | |
|---|---|
| Male thread | G 1/2" |
| DN | 11 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 20 bar |
No spare parts are available for this product.
