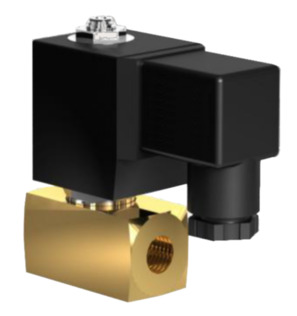

3/2-way solenoid valve Series SL095; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; G 1/4"; DN 1,5mm; Pressure 0...8bar; Length 40mm; Seal FKM; Medium temperature -10...80°C; Voltage 24VDC
Country of origin: Germany
Weight: 0.22 Kg
Short Itemnumber: SL095141.503
Scope of delivery
3/2-way solenoid valve series SL095; directly operated; NC; body brass; tube stainless steel one-piece; G 1/4"; DN 1,5mm; pressure 0...8bar; length 40mm; seal FKM; medium temperature -10...80°C; voltage 24VDC
Technical specifications
| Female thread | G 1/4" |
|---|---|
| DN | 1,5 mm |
| Pressure | 0...8 bar |
| Length | 40 mm |
| Female thread | G 1/4" |
| DN | 1,5 mm |
| Pressure | 0...8 bar |
| Length | 40 mm |
| Seal | FKM |
| Medium temperature | -10...+80 °C |
| Voltage | 24VDC |
SL095-14-1,5-03
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · 3/2-Wege-Magnetventil Serie SL095 · DE
Data sheet 1,1 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · 3/2-way solenoid valve Series SL095 · EN
Data sheet 1,1 MB Updated 13/06/2026
