2/2-way solenoid valve SL049-12-V-BDA08024CS

Price.

885,40 lei
2/2-way solenoid valve Series SL049-V Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - combined operated
  5. 2/2-way solenoid valve Series SL049-V
  6. SL049-12-V-BDA08024CS

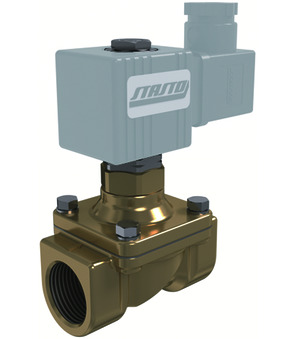

2/2-way solenoid valve SL049-12-V-BDA08024CS
2/2-way solenoid valve SL049-12-V-BDV08024CY
2/2-way solenoid valve SL049-12-V-BDV08024CY
918,50 lei
918,50 lei
2/2-way solenoid valve SL049-12-V-BDV08024CY-C003-32-6
2/2-way solenoid valve SL049-12-V-BDV08024CY-C003-32-6
930,20 lei
930,20 lei

2/2-way solenoid valve SL049-12-V-BDA08024CS

SL049-12-V
2/2-way solenoid valve Series SL049-V; Combined operated; NO; Body Brass; Stainless steel tube One-piece; Seal FKM; Medium temperature -10...+140; Standard coil BDA; Connector size 32mm; G 1/2"; DN 16mm; Pressure AC/DC 0...10bar; Length 70mm
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.76 Kg
Short Itemnumber:SL04912VBDA08024CS
https://www.stasto.ro/web/image/product.template/189596/image_1920?unique=db8a992

SL049-12-V
2/2-way solenoid valve series SL049-V; combined operated; NO; body brass; stainless steel tube one-piece; seal FKM; medium temperature -10...+140; standard coil BDA; connector size 32mm; G 1/2"; DN 16mm; pressure AC/DC 0...10bar; length 70mm
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC

885,40 lei 885.4 RON 885,40 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 16 mm
Length 70 mm
Designs
Connector size 32 mm
Electrical key figures
Voltage 24VDC
Voltage type DC
pressure
Pressure AC/DC 0...10 bar
materials
Seal FKM
characteristics
Coil BDA
Approval CE
