SL035-38-BDA08024CS-C003-32-6

SL035-38-BDA08024CS-C003-32-6

SL035-38

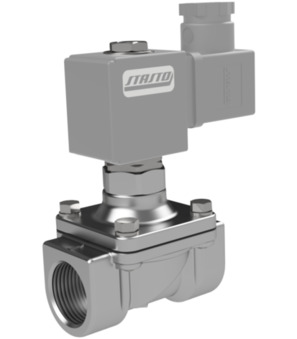

2/2-way solenoid valve Series SL035; Combined operated; NO; Body Stainless steel AISI 316; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...120°C; Standard coil BDA; Connector size 32mm; G 3/8"; DN 15mm; Pressure AC/DC 0...10bar; Length 68mm
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

2/2-Wege-Magnetventil Serie SL035
2/2-Wege-Magnetventil Serie SL035
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.67 Kg
Short Itemnumber: SL03538BDA08024CSC003326
https://www.stasto.ro/web/image/product.template/195150/image_1920?unique=c5de58b

SL035-38
2/2-way solenoid valve series SL035; combined operated; NO; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; medium temperature -10...120°C; standard coil BDA; connector size 32mm; G 3/8"; DN 15mm; pressure AC/DC 0...10bar; length 68mm
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC

1.594,80 lei 1594.8 RON 1.594,80 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Coil
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 3/8"
DN 15 mm
Length 68 mm
Pressure AC/DC 0...10 bar
All specifications (8)
Documents
Data sheets, drawings and CAD files
Female thread G 3/8"
DN 15 mm
Length 68 mm
Pressure AC/DC 0...10 bar
Voltage 24VDC
Voltage type DC
Design Standard
Approval CE
