SL002-18-2-E-BDV08024CY-C003-32-6

SL002-18-2-E-BDV08024CY-C003-32-6

SL002-18-2-E

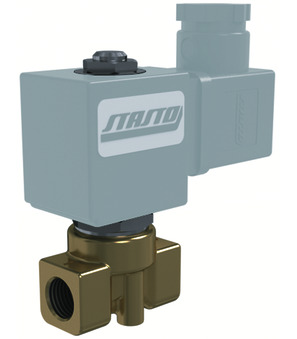

2/2-way solenoid valve; directly operated; NC; body brass; tube stainless steel one-piece; seal EPDM; medium temperature -10...+140°C; standard coil BDA; connector size 32mm; G 1/8"; DN 2mm; pressure AC 0-22bar; pressure DC 0-16bar; length 40mm
BDV08024CY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24VDC
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.38 Kg
Short Itemnumber: SL002182EBDV08024CYC003326
https://www.stasto.ro/web/image/product.template/237927/image_1920?unique=c5de58b

SL002-18-2-E
2/2-way solenoid valve; directly operated; NC; body brass; tube stainless steel one-piece; seal EPDM; medium temperature -10...+140°C; standard coil BDA; connector size 32mm; G 1/8"; DN 2mm; pressure AC 0-22bar; pressure DC 0-16bar; length 40mm
BDV08024CY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24VDC
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC

513,10 lei 513.1 RON 513,10 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Pressure
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/8"
DN 2,0 mm
Length 40 mm
Pressure AC 0...22 bar
All specifications (11)
Documents
Data sheets, drawings and CAD files
Female thread G 1/8"
DN 2,0 mm
Length 40 mm
Pressure AC 0...22 bar
Pressure DC 0...16 bar
Seal EPDM
Medium temperature -10...+140 °C
Voltage 24VDC
Voltage type DC
Design Standard
Approval UL/CSA/VDE

SL002-18-2-E-BDV08024CY-C003-32-6

Documents

6 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Danish / Dansk
ZIP

Data Sheets

3

CAD / 3D

2
German / Deutsch
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Greek / Ελληνικά
ZIP

Data Sheets

3

CAD / 3D

2
English
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Spanish / Español
ZIP

Data Sheets

3

CAD / 3D

2
Finnish / Suomi
ZIP

Data Sheets

3

CAD / 3D

2
French / Français
ZIP

Data Sheets

3

CAD / 3D

2
Croatian / hrvatski jezik
ZIP

Data Sheets

3

CAD / 3D

2
Hungarian / Magyar
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Italian / Italiano
ZIP

Data Sheets

3

CAD / 3D

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

3

CAD / 3D

2
Dutch / Nederlands
ZIP

Data Sheets

3

CAD / 3D

2
Polish / Język polski
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Romanian / română
ZIP

Data Sheets

3

CAD / 3D

2
Slovenian / slovenščina
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Serbian (Latin) / srpski
ZIP

Data Sheets

3

Declarations of Conformity

1

CAD / 3D

2
Swedish / Svenska
ZIP

Data Sheets

3

CAD / 3D

2
2/2-way solenoid valve SL002-18-2-E
SL002-18-2-E x 1.0 Pcs
2/2-way solenoid valve SL002-18-2-E
2/2-way solenoid valve; directly operated; NC; body brass; tube stainless steel one-piece; seal EPDM; medium temperature -10...+140°C; standard coil BDA; connector size 32mm; G 1/8"; DN 2mm; pressure AC 0-22bar; pressure DC 0-16bar; length 40mm
BDV08024CY
BDV08024CY x 1.0 Pcs
BDV08024CY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 24VDC
C003-32-6
C003-32-6 x 1.0 Pcs
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
