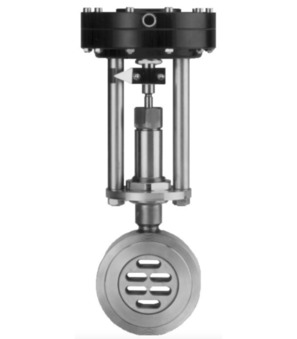

Control valve Type SG10 15-0,04-125-4...20mA-ATEX

Control valve Type SG10 15-0,04-125-4...20mA-ATEX

Control valve Type SG10; DN15; PN10/40; NC; Material: 1.4571/1.4581; Fixed disc 1.4571 Coated; Sliding disc SFC; Kvs-value 0,04 (1%); Characteristic Linear; Diaphragm actuator 125cm²; Mounted I/P-positioner For single acting linear actuators; Sipart PS2; Input signal 4-20mA; II2G Ex ia IIC T6/4 Gb; Area 1

Intrastat No.: 84818079
Country of origin: Germany
Weight: 7.37 Kg
Short Itemnumber: SG1015WWF125202
https://www.stasto.ro/web/image/product.template/142447/image_1920?unique=29efce2

control valve type SG10; DN15; PN10/40; NC; material: AISI 316Ti/AISI 316Ti; fixed disc AISI 316Ti coated; sliding disc SFC; kvs-value 0,04 (1%); characteristic linear; diaphragm actuator 125cm²; mounted I/P-positioner for single acting linear actuators; Sipart PS2; input signal 4-20mA; II2G Ex ia IIC T6/4 Gb; area 1

29.951,30 lei 29951.3 RON 29.951,30 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Control valve Type SG10 15-0,04-125
    SG10-15-WWF1252-01 x 1.0
    Control valve Type SG10 15-0,04-125
    Control valve Type SG10; DN15; PN10/40; NC; Material: 1.4571/1.4581; Fixed disc 1.4571 Coated; Sliding disc SFC; Kvs-value 0,04 (1%); Characteristic Linear; Diaphragm actuator 125cm²; Incl. Coupler For positioner SIPART PS2
    Add to Cart
    EP0S20-ZZZ-EX x 1.0
    EP0S20-ZZZ-EX
    Mounted I/P-positioner For single acting linear actuators; Sipart PS2; Input signal 4-20mA; II2G Ex ia IIC T6/4 Gb; Area 1
