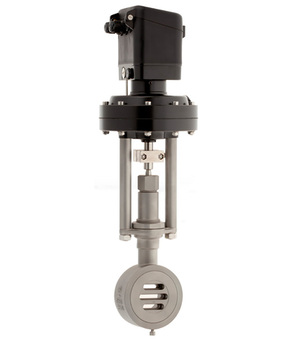

Control valve Type SG10 150-338-250
Control valve Type SG07; DN150; PN10/40; NC; Material: Zinc plated steel; Fixed disc STN2; Sliding disc STN2/STN3; Kvs-value 338 (100%); Characteristic Linear; Diaphragm actuator 250cm²; Mounted I/P-positioner 8049 ExPro; II 2G Ex ia IIC T4 Gb; IP 65; Incl. Earthing connection; Special version
Intrastat No.: 84818079
Country of origin: Germany
Weight: 11.95 Kg
Short Itemnumber: SG07150UWN250301
Country of origin: Germany
Weight: 11.95 Kg
Short Itemnumber: SG07150UWN250301
control valve type SG07; DN150; PN10/40; NC; material: zinc plated steel; fixed disc STN2; sliding disc STN2/STN3; kvs-value 338 (100%); characteristic linear; diaphragm actuator 250cm²; mounted I/P-positioner 8049 ExPro; II 2G Ex ia IIC T4 Gb; IP 65; incl. earthing connection; special version
No Specifications
No spare parts are available for this product.
