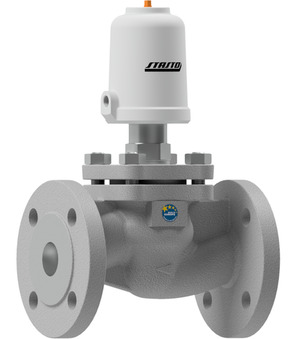

Pneumatically operated seat valve SE23-25-ST51-03

Pneumatically operated seat valve SE23-25-ST51-03

pneumatically operated seat valve series SE23-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NO; body stainless steel AISI 316; seal PTFE; flange PN40; for gaseous media and liquids; closing against flow; medium temperature -30...+170°C; DN 25mm; operating pressure 0…7bar; control pressure 5...10bar; diameter actuator 50mm; high temperature design

Intrastat No.: 84818079
Country of origin: Germany
Short Itemnumber: SE2325ST5103
https://www.stasto.ro/web/image/product.template/233217/image_1920?unique=3190a4b

pneumatically operated seat valve series SE23-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NO; body stainless steel AISI 316; seal PTFE; flange PN40; for gaseous media and liquids; closing against flow; medium temperature -30...+170°C; DN 25mm; operating pressure 0…7bar; control pressure 5...10bar; diameter actuator 50mm; high temperature design

4.543,60 lei 4543.6 RON 4.543,60 lei

Not Available For Sale

  • DN
  • Cable length
  • Flange
  • Diameter Actuator
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Operating pressure
  • Control pressure
  • Coil
  • Actuator
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 25 mm
Flange PN40
Diameter Actuator 50 mm
design
Design ATEX
pressure
Operating pressure 0...7 bar
Control pressure 5...10 bar
