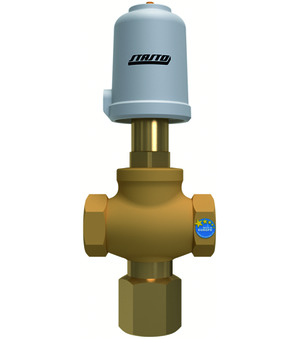

Pneumatically operated seat valve Series SE10-RT; NC; 3-way-type; Body Bronze; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -30...+170°C; RP 3/4"; DN 20mm; Operating pressure 0-13bar; Control pressure 5-9bar; Diameter Actuator 50mm
Country of origin: Germany
Weight: 0.53 Kg
Short Itemnumber: SE1034RT51
pneumatically operated seat valve series SE10-RT; NC; 3-way-type; body bronze; seal PTFE; female thread; for gaseous media and liquids; medium temperature -30...+170°C; RP 3/4"; DN 20mm; operating pressure 0-13bar; control pressure 5-9bar; diameter actuator 50mm
Technical specifications
| Female thread | RP 3/4" |
|---|---|
| DN | 20 mm |
| Operating pressure | 0...13 bar |
| Control pressure | 5...9 bar |
| Female thread | RP 3/4" |
| DN | 20 mm |
| Operating pressure | 0...13 bar |
| Control pressure | 5...9 bar |
| Diameter Actuator | 50 mm |
| Medium temperature | -30...+170 °C |
SE10-34-RT51
