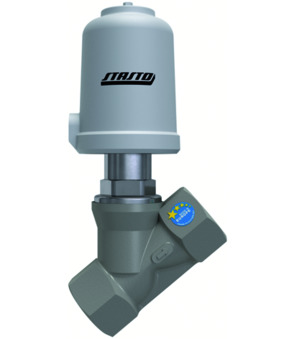

Pneumatically operated seat valve SE01-34-ST51-06

Pneumatically operated seat valve SE01-34-ST51-06

Pneumatically operated seat valve Series SE01-ST-HT; High temperature design; ATEX Area 1,21; NC; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media; Closing with flow; Medium temperature -30...+200°C; Incl. Splash water protection; G 3/4"; DN 20mm; Operating pressure 0…27bar; Control pressure 5…10bar; Diameter Actuator 50mm

Intrastat No.: 84818079
Country of origin: Germany Made in Europe
Weight: 1.26 Kg
Short Itemnumber: SE0134ST5106
https://www.stasto.ro/web/image/product.template/147526/image_1920?unique=3190a4b

pneumatically operated seat valve series SE01-ST-HT; high temperature design; ATEX area 1,21; NC; body stainless steel AISI 316; seal PTFE; female thread; for gaseous media; closing with flow; medium temperature -30...+200°C; incl. splash water protection; G 3/4"; DN 20mm; operating pressure 0…27bar; control pressure 5…10bar; diameter actuator 50mm

3.264,50 lei 3264.5 RON 3.264,50 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Diameter Actuator
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Operating pressure
  • Control pressure
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 3/4"
DN 20 mm
Operating pressure 0...27 bar
Control pressure 5...10 bar
All specifications (6)
Female thread G 3/4"
DN 20 mm
Operating pressure 0...27 bar
Control pressure 5...10 bar
Diameter Actuator 50 mm
Design ATEX
No spare parts are available for this product.
