RV07-34N-6-65-1A-0

Price.

4.701,70 lei
Relief valve Series RV07 Set pressure Store
  1. Products
  2. Armatures
  3. Pressure regulators, safety valves and accessories
  4. Other materiales - A07
  5. Relief valve Series RV07 Set pressure
  6. RV07-34N-6-65-1A-0
RV07-34N-6-65-1A-0
RV07-34-6-94-1A
RV07-34-6-94-1A
4.140,20 lei
4.140,20 lei
Relief valve RV07-12W-8-50/69,99-I-0
Relief valve RV07-12W-8-50/69,99-I-0
5.810,40 lei
5.810,40 lei

RV07-34N-6-65-1A-0

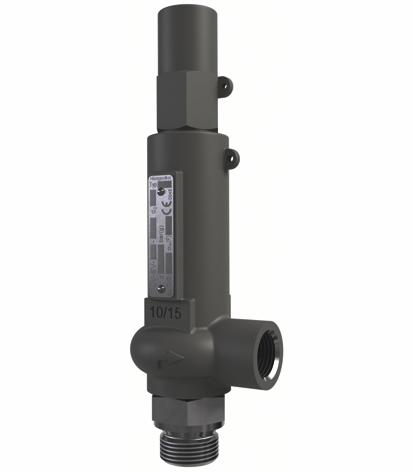

Relief valve; Body 1.4571; Cap 1.4581; Gas-proof cover; Without TÜV-inspection number; Inlet male 3/4"NPT; DN 6mm; Outlet female 3/4"NPT; Seat seal PEEK; Other seals EPDM; Temperature range -40...+150°C; Set pressure 65Bar (Range of adjustment 65...90bar); Free of oil and grease for hydrogen

Intrastat No.: 84814010
Country of origin: Germany
Short Itemnumber:RV0734N6651A0
https://www.stasto.ro/web/image/product.template/241399/image_1920?unique=b08f7aa

relief valve; body AISI 316Ti; cap AISI 316Ti; gas-proof cover; without TÜV-inspection number; inlet male 3/4"NPT; DN 16mm; outlet female 3/4"NPT; seat seal PEEK; other seals FKM; set pressure 65bar

4.701,70 lei 4701.7 RON 4.701,70 lei

Not Available For Sale

  • DN
  • Inlet male
  • Outlet female
  • Design
  • Seat seal
  • Other seals
  • Set pressure

This combination does not exist.

Availability:
Contact Us
dimension
DN 6 mm
Inlet male 3/4" NPT
Outlet female 3/4" NPT
design
Design Oil and grease-free for oxygen
materials
Seat seal PEEK
Other seals EPDM
characteristics
Set pressure 65 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Relief valve Series RV07_EN.pdf
Download

ZIP
Datové listy
1
Datový list_odlehčovací ventil série RV07_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Aflastningsventil Serie RV07_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Entlastungsventil Serie RV07_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Βαλβίδα εκτόνωσης πίεσης Σειρά RV07_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de descarga Serie RV07_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Paineenpoistoventtiili Sarja RV07_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Soupape de décharge Série RV07_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Rasterventil Serija RV07_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_nyomáshatároló szelep sorozat RV07_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola di scarico Serie RV07_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Avlastningsventil Serie RV07_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Ontlastventiel Serie RV07_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór upustowy Seria RV07_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă de siguranță serie RV07_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Razbremenilni ventil serija RV07_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_prelivni ventil serije RV07_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Avlastningsventil Serie RV07_SV.pdf
Download
No spare parts are available for this product.
