Relief valve RV05-12-13-2/12

Price.

691,00 lei
Relief valve Series RV05 Store
  1. Products
  2. Armatures
  3. Pressure regulators, safety valves and accessories
  4. Safety and relief valves
  5. Relief valve Series RV05
  6. RV05-12-13-2/12
Relief valve RV05-12-13-2/12
Relief valve RV05-12-13-0,5/2,5-T
Relief valve RV05-12-13-0,5/2,5-T
691,00 lei
691,00 lei
Relief valve RV05-12-13-2/12-T
Relief valve RV05-12-13-2/12-T
691,00 lei
691,00 lei

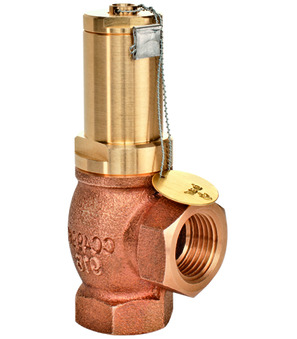

Relief valve RV05-12-13-2/12

Relief valve Series RV05; Oil- and gas-proof cover; Body Bronze; Without TÜV-inspection number; G 1/2"; DN 13mm; Pressure range 2...12bar; Seal NBR; Medium temperature -30…+130°C

Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.36 Kg
Short Itemnumber:RV051213212
https://www.stasto.ro/web/image/product.template/96435/image_1920?unique=0ec923a

relief valve series RV05; oil- and gas-proof cover; body bronze; without TÜV-inspection number; G 1/2"; DN 13mm; pressure range 2...12bar; seal NBR; medium temperature -30…+130°C

691,00 lei 691.0 RON 691,00 lei

Not Available For Sale

  • Female thread
  • DN
  • Pressure range
  • Seal
  • Medium temperature

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 13 mm
pressure
Pressure range 2...12 bar
materials
Seal NBR
characteristics
Medium temperature -30...+130 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Relief valve Series RV05_EN.pdf
Download
Assembly and Operating Instructions
1
Assembly and operating instructions_Relief valve Series RV05_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Relief valve Series RV05_EN.pdf
Download
CAD / 3D
1
CADSTEP_RV051213212.stp
Download

ZIP
Datové listy
1
Datový list_odlehčovací ventil série RV05_CS.pdf
Download
Montážní a provozní návody
1
Návod k montáži a obsluze_odlehčovací ventil série RV05_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_odlehčovací ventil série RV05_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Aflastningsventil Serie RV05_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Entlastungsventil Serie RV05_DE.pdf
Download
Montage- und Betriebsanleitungen
1
Montage- und Betriebsanleitung_Entlastungsventil Serie RV05_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Entlastungsventil Serie RV05_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Βαλβίδα εκτόνωσης πίεσης Σειρά RV05_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de descarga Serie RV05_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Paineenpoistoventtiili Sarja RV05_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Soupape de décharge Série RV05_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Rasterventil Serija RV05_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_nyomáshatároló szelep sorozat RV05_HU.pdf
Download
Szerelési és kezelési útmutatók
1
Összeszerelési és kezelési útmutató_nyomáshatároló szelep sorozat RV05_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_nyomáshatároló szelep sorozat RV05_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola di scarico della pressione Serie RV05_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Avlastningsventil Serie RV05_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Ontlastventiel Serie RV05_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór upustowy Seria RV05_PL.pdf
Download
Instrukcje montażu i obsługi
1
Instrukcja montażu i obsługi_zawór upustowy Seria RV05_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_zawór upustowy Seria RV05_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă de siguranță serie RV05_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Razbremenilni ventil serija RV05_SL.pdf
Download
Navodila za montažo in uporabo
1
Navodila za montažo in uporabo_Razbremenilni ventil serija RV05_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Razbremenilni ventil serija RV05_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_prelivni ventil serije RV05_SRLATIN.pdf
Download
Assembly and Operating Instructions
1
Uputstvo za montažu i upotrebu_prelivni ventil serije RV05_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_prelivni ventil serije RV05_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Avlastningsventil Serie RV05_SV.pdf
Download
No spare parts are available for this product.
