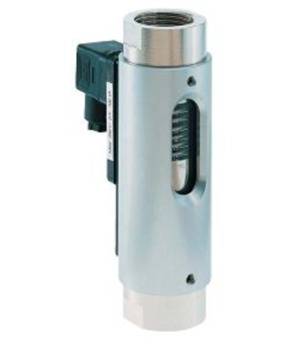

Flow monitors With Inspection glass Series RVO/U; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 1/2"; Switching range 12...28L/min; Maximum pressure 16bar; U max. 230V; I max. 3A; Length 114mm
Country of origin: Germany
Weight: 0.3 Kg
Short Itemnumber: RV0U228MS
flow monitors with inspection glass series RVO/U; connections, float nickel plated brass; body aluminum not wetted; for any mounting position; medium temperature max. 100°C; water scale; NO contact; connection 1/2"; switching range 12...28l/min; maximum pressure 16bar; U max. 230V; I max. 3A; length 114mm
Technical specifications
| Connection | 1/2" |
|---|---|
| Switching range | 12...28 l/min |
| Maximum pressure | 16 bar |
| U max. | 230 V |
| Connection | 1/2" |
| Switching range | 12...28 l/min |
| Maximum pressure | 16 bar |
| U max. | 230 V |
| I max. | 3 A |
| Length | 114 mm |
RV0/U-2/28-MS
