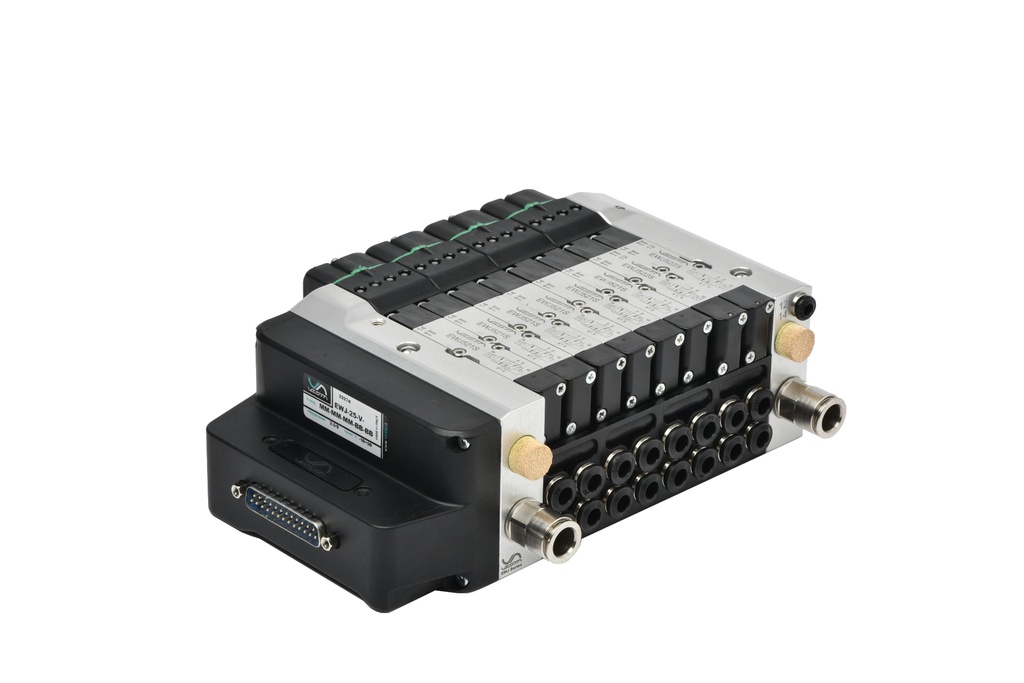

PS157-3-1446-MX-BWD-PF
valve island series PS157; Profinet; 3-fold;
1x 5/2-way valve electrical/spring; 1x operating pressure separator with pressure supply port; 1x 5/2-way valve electrical/electrical; 1x operating pressure separator with pressure supply port; 1x double 3/2-way valve NC electrical/spring;
flow rate 500 Nl/min; voltage 24VDC; control pressure 3...7 bar; operating pressure -0,9...9 bar; pressure connection 1/4"; working ports: 6mm; protection class IP65
Country of origin: Italy
Weight: 1.478 Kg
Short Itemnumber: PS15731446MXBWDPF
valve island series PS157; Profinet; 3-fold;
1x 5/2-way valve electrical/spring; 1x operating pressure separator with pressure supply port; 1x 5/2-way valve electrical/electrical; 1x operating pressure separator with pressure supply port; 1x double 3/2-way valve NC electrical/spring;
flow rate 500 Nl/min; voltage 24VDC; control pressure 3...7 bar; operating pressure -0,9...9 bar; pressure connection 1/4"; working ports: 6mm; protection class IP65
