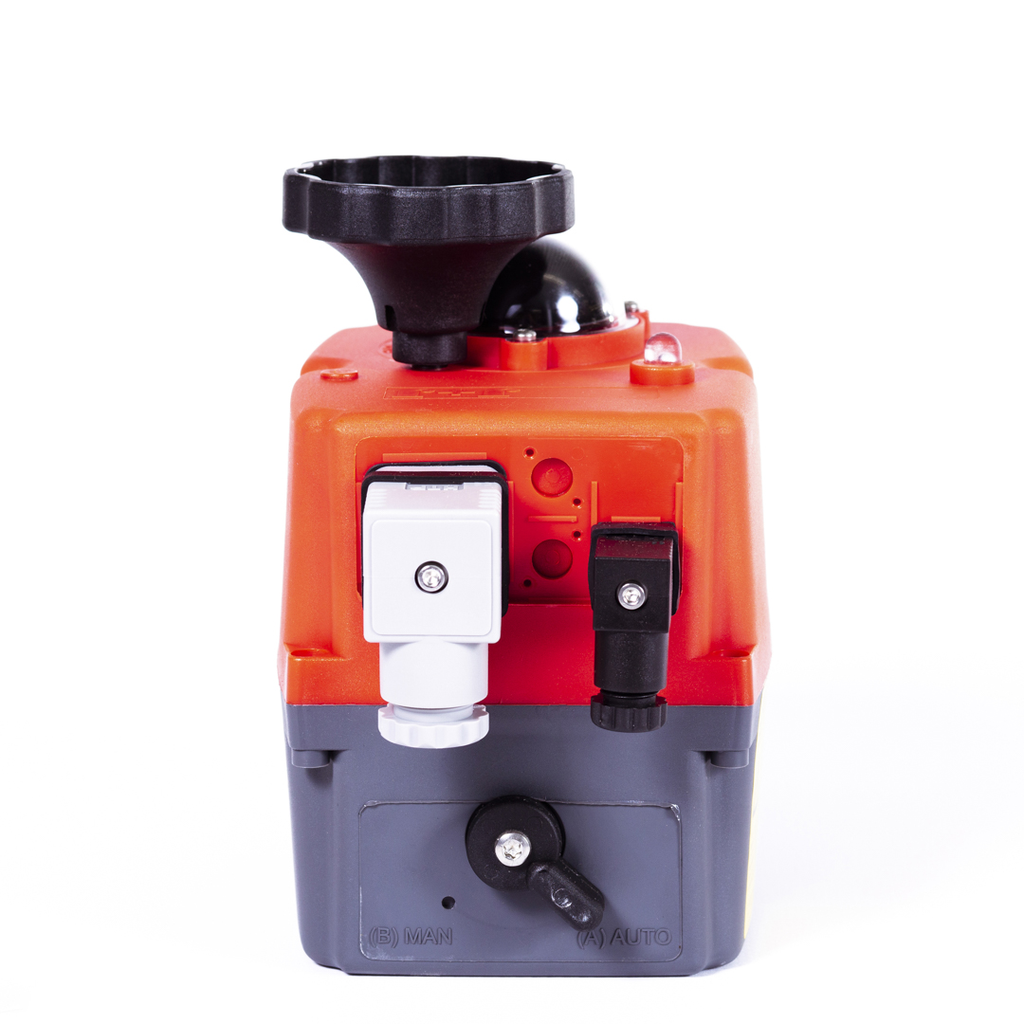

Electrical actuator J4C20-QH9-Q11

Electrical actuator J4C20-QH9-Q11

Electrical actuator Series J4C; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 20Nm; Operating time 9s; Flange ISO5211 F03/04/05-star 11mm; Voltage 24...240VDC/AC (50-60Hz); Protection class IP67; Accumulator for safety position NO

Intrastat No.: 85437090
Country of origin: Spain
Weight: 2.0 Kg
Short Itemnumber: J4C20QH9Q11
https://www.stasto.ro/web/image/product.template/217192/image_1920?unique=a4f2fe4

electrical actuator series J4C; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; torque 20Nm; operating time 9s; flange ISO5211 F03/04/05-star 11mm; voltage 24...240VDC/AC (50-60Hz); protection class IP67; accumulator for safety position NO

3.956,10 lei 3956.1 RON 3.956,10 lei

Not Available For Sale

excl. tax
  • Flange ISO5211
  • Voltage
  • Torque
  • Operating time
  • Protection class

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Torque 20 Nm
Operating time 9 s
Flange ISO5211 F03/04/05-star 11mm
Voltage 24...240VDC/AC (50-60Hz)
All specifications (5)
Documents
Data sheets, drawings and CAD files
Torque 20 Nm
Operating time 9 s
Flange ISO5211 F03/04/05-star 11mm
Voltage 24...240VDC/AC (50-60Hz)
Protection class IP67

J4C20-QH9-Q11

Documents

2 Documents 2 Languages

German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1
No spare parts are available for this product.
