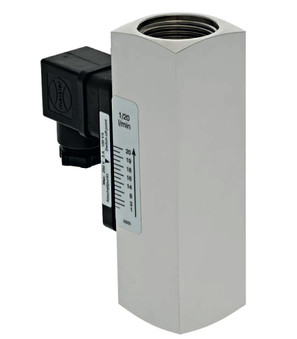

Flow monitors 3/4"-1...20-250-300-3-152
Flow monitors; Viscosity compensated ...600mm²/s; Body 1.4571; For any mounting position; Medium temperature Max. 120°C; Oil scale; NO contact; Application: Monitoring of lubrication; Connection 3/4"; Switching range 1...20L/min; Maximum pressure 300bar; U max. 250V; Max. current 3A; Length 152mm
Intrastat No.: 90261081
Country of origin: Germany
Weight: 1.34 Kg
Short Itemnumber: FM3634W20
Country of origin: Germany
Weight: 1.34 Kg
Short Itemnumber: FM3634W20
Strömungswächter; viskositätskompensiert ...600mm²/s; Gehäuse 1.4571; Einbaulage beliebig; Mediumstemperatur max. 120°C; Ölskala; Schließer; Anwendung: Überwachung von Schmierkreisläufen; Anschluss 3/4"; Schaltbereich 1...20l/min; max. Druck 300bar; U max. 250V; max. Strom 3A; Baulänge 152mm
No Specifications
No spare parts are available for this product.
