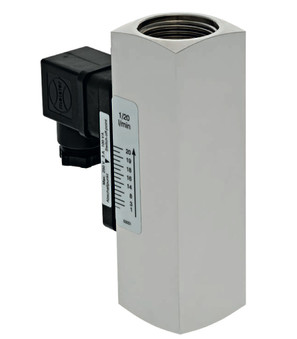

Flow monitors 1"-1...20-250-250-2-130
Flow monitors; Viscosity compensated ...600mm²/s; Body Nickel plated brass; For any mounting position; Medium temperature Max. 120°C; Oil scale; NO contact; Application: Monitoring of lubrication; Connection 1"; Switching range 1...20L/min; Maximum pressure 250bar; U max. 250V; Max. current 2A; Length 130mm; ATEX-design II 2 G Ex mb IIC T6 Gb + II 2 D Ex tb IIIC T80 °C Db
Intrastat No.: 90261081
Country of origin: Germany
Weight: 1.16 Kg
Short Itemnumber: FM3610N2001
Country of origin: Germany
Weight: 1.16 Kg
Short Itemnumber: FM3610N2001
flow monitors; viscosity compensated ...600mm²/s; body nickel plated brass; for any mounting position; medium temperature max. 120°C; oil scale; NO contact; application: monitoring of lubrication; connection 1"; switching range 1...20l/min; maximum pressure 250bar; U max. 250V; max. current 2A; length 130mm; ATEX-design II 2 G Ex mb IIC T6 Gb + II 2 D Ex tb IIIC T80 °C Db
| Design | ATEX |
No spare parts are available for this product.
