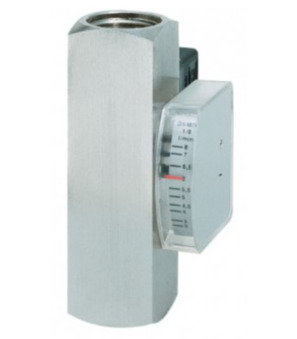

Flow monitors 1/2“-3…10-250-250V-130
Flow monitors; Viscosity compensated ...600mm²/s; Body Nickel plated brass ; For any mounting position; Medium temperature Max. 75°C; Oil scale; Change-over contact; Application: Monitoring of lubrication; Connection 1/2"; Switching range 3…10 L/min; Maximum pressure 250bar; U max. 250V; Max. current 1A; Length 130mm; ATEX-design; ExII2GExmbIICT5Gb, ExII2GExhIIBT5Gb
Intrastat No.: 90261081
Country of origin: Germany
Weight: 1.55 Kg
Short Itemnumber: FM2412N1003
Country of origin: Germany
Weight: 1.55 Kg
Short Itemnumber: FM2412N1003
flow monitors; viscosity compensated ...600mm²/s; body nickel plated brass ; for any mounting position; medium temperature max. 75°C; oil scale; change-over contact; application: monitoring of lubrication; connection 1/2"; switching range 3…10 l/min; maximum pressure 250bar; U max. 250V; max. current 1A; length 130mm; ATEX-design; ExII2GExmbIICT5Gb, ExII2GExhIIBT5Gb
| Design | ATEX |
No spare parts are available for this product.
