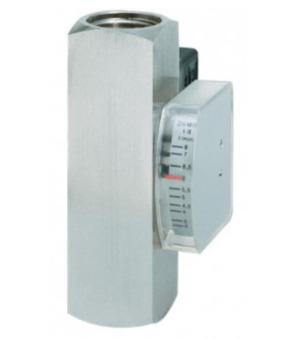

Flow monitors Series FM24; Viscosity compensated ...600mm²/s; Body Nickel plated brass; For any mounting position; Medium temperature Max. 120°C; Oil scale; Connection 1"; Indicating range 10...30L/min; Maximum pressure 250bar; Length 130mm; Without switching unit
Intrastat No.: 90261081
Country of origin: Germany
Weight: 1.156 Kg
Short Itemnumber: FM2410N3004
Country of origin: Germany
Weight: 1.156 Kg
Short Itemnumber: FM2410N3004
flow monitors series FM24; viscosity compensated ...600mm²/s; body nickel plated brass; for any mounting position; medium temperature max. 120°C; oil scale; application: monitoring of lubrication; without switch unit; connection 1"; switching range 10...30l/min; maximum pressure 250bar; length 130mm
Technical specifications
| Connection | 1" |
|---|---|
| Brand | STASTO |
| Connection | 1" |
| Brand | STASTO |
No spare parts are available for this product.
