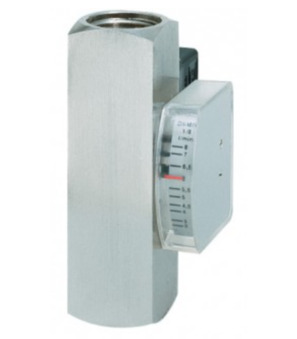

Flow monitors Series FM24; Viscosity compensated ...600mm²/s; Body Nickel plated brass; For any mounting position; Medium temperature Max. 120°C; Oil scale; Application: Monitoring of lubrication; Switch unit: 2 Change-over contact; Connection G1"; Switching range 10...30L/min; Maximum pressure 250bar; U max. 250V; I max. 1,5A; Length 130mm; 2. Contact Opposite
Country of origin: Germany
Weight: 1.336 Kg
Short Itemnumber: FM2410N3003
flow monitors series FM24; viscosity compensated ...600mm²/s; body nickel plated brass; for any mounting position; medium temperature max. 120°C; oil scale; application: monitoring of lubrication; switch unit: 2 change-over contact; connection G1"; switching range 10...30l/min; maximum pressure 250bar; U max. 250V; I max. 1,5A; length 130mm; 2. Contact opposite
Technical specifications
| Connection | 1" |
|---|---|
| Switch unit | Change-over contact |
| Switching range | 10...30 l/min |
| Maximum pressure | 250 bar |
| Connection | 1" |
| Switch unit | Change-over contact |
| Switching range | 10...30 l/min |
| Maximum pressure | 250 bar |
| U max. | 250 V |
| I max. | 1,5 A |
| Length | 130 mm |
FM24-10-N-30-03
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Strömungswächter Serie FM24 · DE
Data sheet 3,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Flow monitors Series FM24 · EN
Data sheet 3,3 MB Updated 13/06/2026
