E-149G011006-VB190H

Name: E-149G011006-VB190H
Brand: STASTO
SKU: E-149G011006-VB190H
Price: 999999.0 RON
Availability: InStock

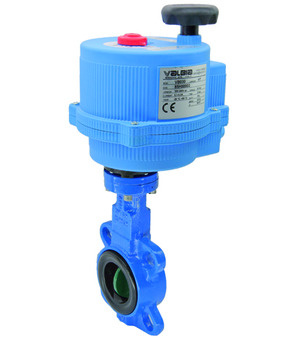

Butterfly valve with electrical actuator Series Sylax; Wafer type; According to ISO 5752; Body Cast iron EN-GJL-250 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Polyamide-coated; Shaft 1.4028; Liner EPDM; Nominal flange pressure PN6/10/16; Medium temperature +8...+110 °C; Pressure range 0...10bar; DN 150mm; Length 56mm; Operating time 27s; Voltage 100-240VAC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 13.73 Kg
Short Itemnumber: E149G011006VB190H

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW6-150-DPE-L x 1.0

Butterfly valve with hand lever BUW6-150-DPE-L

Butterfly valve with hand lever Series BUW6-DE-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Zinc plated ductile iron EN-GJS-400-15; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 150mm; Length 56mm

Add to Cart

VB190-H x 1.0

Electrical actuator VB190-H

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67

Add to Cart
