E-149G010956-VB110L

E-149G010956-VB110L

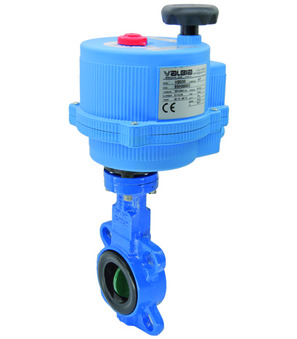

Butterfly valve with electrical actuator Series Sylax; Wafer type; According to ISO 5752; Body Cast iron EN-GJL-250 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Polyamide-coated; Shaft 1.4028; Liner EPDM; Nominal flange pressure PN6/10/16; Medium temperature +8...+110 °C; Pressure range 0...10bar; DN 100mm; Length 52mm; Operating time 27s; Voltage 24VAC/DC

Intrastat No.: 84818085
Country of origin: Italy
Weight: 11.23 Kg
Short Itemnumber: E149G010956VB110L
https://www.stasto.ro/web/image/product.template/76982/image_1920?unique=9aac07e

Butterfly valve with electrical actuator Series Sylax; Wafer type; According to ISO 5752; Body Cast iron EN-GJL-250 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Polyamide-coated; Shaft 1.4028; Liner EPDM; Nominal flange pressure PN6/10/16; Medium temperature +8...+110 °C; Pressure range 0...10bar; DN 100mm; Length 52mm; Operating time 27s; Voltage 24VAC/DC

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Butterfly valve with hand lever BUW6-100-DUE-L
    BUW6-100-DUE-L x 1.0
    Butterfly valve with hand lever BUW6-100-DUE-L
    Butterfly valve with hand lever Series BUW6-DE-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Zinc plated steel; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 100mm; Length 52mm
    Add to Cart
    Electrical actuator VB110-L
    VB110-L x 1.0
    Electrical actuator VB110-L
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
    Add to Cart
    ATSV0705 x 1.0
    ATSV0705
    Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F05; Height 60mm
    Add to Cart
    Accessory Products
    Electrical actuator VB110-L
    VB110-L
    Electrical actuator VB110-L
