Swing check valve CM-2466V-125
Swing check valve CM-2466E-100
Swing check valve CM-2466E-100
979,20 lei
979,20 lei
Swing check valve CM-2466V-150
Swing check valve CM-2466V-150
1.196,50 lei
1.196,50 lei

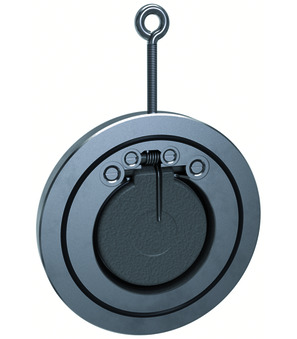

Swing check valve CM-2466V-125

Swing check valve Series CM-2466/CM-2424; Wafer type; Reset by spring; Body Zinc plated steel; DN 125mm; Length 18mm; Nominal flange pressure PN10/16; Seal FKM; Medium temperature -10…250°C; Flap material 1.4401

Intrastat No.: 84813091
Country of origin: Italy
Weight: 3.4 Kg
Short Itemnumber:CM2466V125
https://www.stasto.ro/web/image/product.template/91436/image_1920?unique=b08f7aa

swing check valve series CM-2466/CM-2424; wafer type; reset by spring; body zinc plated steel; DN 125mm; length 18mm; nominal flange pressure PN10/16; seal FKM; medium temperature -10…250°C; flap material 1.4401

1.095,50 lei 1095.5 RON 1.095,50 lei

Not Available For Sale

  • DN
  • Length
  • Flange
  • Seal
  • Flap material
  • Medium temperature

This combination does not exist.

Availability:
Contact Us
dimension
DN 125 mm
Length 18 mm
Flange PN10/16
materials
Seal FKM
Flap material 1.4401
characteristics
Medium temperature -10...+250 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
CAD / 3D
1
CADSTEP_CM2466V125.stp
Download
No spare parts are available for this product.
