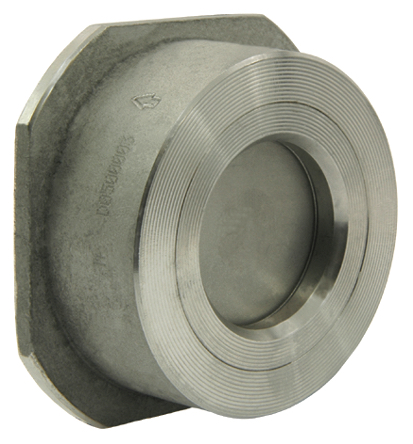

Check valve CH058-65-0,2
Check valve Series CH058; Wafer type; Body 1.4408; Disc 1.4404; Metal sealing; Medium temperature -55...250°C; DN 65mm; Length 46mm; Nominal flange pressure 6/40, ANSI150/300; Opening pressure: 0,2bar
Intrastat No.: 84813091
Country of origin: Italy
Weight: 1.6 Kg
Short Itemnumber: CH058650.2
Country of origin: Italy
Weight: 1.6 Kg
Short Itemnumber: CH058650.2
check valve series CH058; wafer type; body AISI 316; disc AISI 316L; metal sealing; medium temperature -55...250°C; DN 65mm; length 46mm; nominal flange pressure 6/40, ANSI150/300; opening pressure: 0,2bar
| dimension | |
|---|---|
| DN | 65 mm |
| Length | 46 mm |
| Flange | PN6/10/16/25/40, ANSI150/300 |
| pressure | |
| Opening pressure | 0,2 bar |
No spare parts are available for this product.
