Swing check valve Series CH013 Store

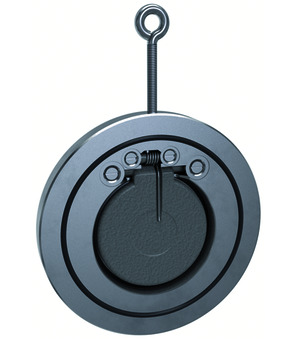

Swing check valve CH013-300-E-A01

Swing check valve CH013-300-E-A01

Swing check valve; Wafer type; Reset by spring; Body, Disc 1.4401; ; DN 300mm; Length 32mm; Nominal flange pressure PN10; Seal EPDM; Medium temperature -40…130°C; Incl. ATEX-Declaration of conformity; Free of oil and grease

Intrastat No.: 84813091
Country of origin: Italy
Short Itemnumber:CH013300EA01

swing check valve; wafer type; reset by spring; body, disc AISI 316; ; DN 300mm; length 32mm; nominal flange pressure PN10; seal EPDM; medium temperature -40…130°C; incl. ATEX-declaration of conformity; free of oil and grease

999.999,00 lei 999999.0 RON 999.999,00 lei

DN
- 300 mm
Length
- 32 mm
Flange
- PN10
Design
- ATEX
Medium temperature
- -20...+150 °C

This combination does not exist.

Availability:

Adaugă în coș

dimension
DN	300 mm
Length	32 mm
Flange	PN10
design
Design	ATEX
characteristics
Medium temperature	-20...+150 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

1

Data sheet_Swing check valve Series CH013_EN.pdf

Datové listy

1

Datový list_zpětná klapka série CH013_CS.pdf

Adatlapok

1

Adatlap_visszacsapó csappantyú sorozat CH013_HU.pdf

Karty katalogowe

1

Arkusz danych_klapa zwrotna Seria CH013_PL.pdf

Podatkovni listi

1

Podatkovni list_Protipovratna loputa serija CH013_SL.pdf

Data Sheets

1

Tehnički list_nepovratni ventil serije CH013_SRLATIN.pdf

No spare parts are available for this product.
