NC; Body Bronze; Seal PTFE; Female thread; For gaseous media (Steam Max. 140°C); Closing with flow; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE01-RT -
NC; Body Bronze; Seal PTFE; Female thread; For liquids; Closing against flow; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE02-RT -
NO; Body Bronze; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE03-RT -
NC; Body Brass; Seal PTFE; Female thread; For gaseous media (Steam Max. 140°C); Closing with flow; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE01-BT -
NC; Body Brass; Seal PTFE; Female thread; For liquids; Closing against flow; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE02-BT -
NO; Body Brass; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE03-BT -
NC; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media and liquids; Closing against flow; Medium temperature -40...+180°C
Pneumatically operated seat valve Series 21IA.GC -
NO; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -40...+180°C
Pneumatically operated seat valve Series 21IA.GA -
NC; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media; Closing with flow; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE01-ST -
NC; Body Stainless steel 1.4408; Seal PTFE; Female thread; For liquids; Closing against flow; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE02-ST -
NO; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE03-ST -
NC; Body Cast iron EN-GJL-250; Seal EPDM; Flange PN16; For gaseous media; Closing with flow; Medium temperature -10...+140°CPneumatically operated seat valve Series SE06-GE
-
NC; Body Cast iron EN-GJL-250; Seal EPDM; Flange PN16; For liquids; Closing against flow; Medium temperature -10...+140°CPneumatically operated seat valve Series SE07-GE
-
NO; Body Cast iron EN-GJL-250; Seal EPDM; Flange PN16; For gaseous media and liquids; Medium temperature -10...+140°CPneumatically operated seat valve Series SE08-GE
-
NC; Body Cast iron EN-GJL-250; Seal PTFE; Flange PN16; Pressure compensated cone for high pressure; Medium temperature -10...+170°CPneumatically operated seat valve Series SE09-GT
-
NO; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For gaseous media and liquids; Closing against flow; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE23-ST -
NC; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For liquids; Closing against flow; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE24-ST -
NC; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For gaseous media; Closing with flow; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE25-ST -
NC; 3-way-type; Body Bronze; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE10-RT -
NO; 3-way-type; Body Bronze; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE11-RT -
Distribution function; 3-way-type; Body Bronze; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE12-RT -
Mixing function; 3-way-type; Body Bronze; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -30...+170°C
Pneumatically operated seat valve Series SE13-RT
Seat valves - pneumatically operated
| Female thread | DN | Diameter Actuator | Operating pressure | Control pressure | Medium temperature | Voltage | Voltage type | Design | Type |
|---|---|---|---|---|---|---|---|---|---|
| RP 1" | 25 mm | 80 mm | 0...16 bar | 3,3...6,4 bar | -30...+170 °C | 230V/50-60Hz | - | With integrated LED-yellow, VDR and PVC-cable (2 m) | SE11-10-RT81-ABS31-C001-22-C002-31-LVCV20-1 |

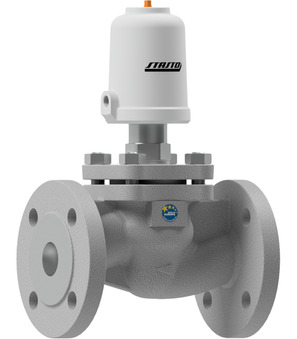

Pneumatically operated seat valve Series SE25-ST
NC; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For gaseous media; Closing with flow; Medium temperature -30...+170°C
| DN | Flange | Diameter Actuator | Operating pressure | Control pressure | Voltage | Voltage type | Design | Cable length | Approval | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 mm | PN40 | 125 mm | 0...35 bar | 5...10 bar | 24VDC | DC | ATEX | - | CE | SE25-32-ST1251-ABS31-BDA08024CS-C003-32-LV-2 | 31060046 |
| 32 mm | PN40 | 125 mm | 0...35 bar | 5...10 bar | 220-230V/50-60Hz | AC | ATEX | - | CE | SE25-32-ST1251-ABS31-BDA08223DS-C003-31-CV20-6 | 31060047 |
| 32 mm | PN40 | 125 mm | 0...35 bar | 5...10 bar | 220-230V/50-60Hz | AC | ATEX | - | CE | SE25-32-ST1251-ABS31-BDA08223DS-C003-32-6 | 31060048 |
| 32 mm | PN40 | 125 mm | 0...35 bar | 5...10 bar | 220-230V/50-60Hz | AC | ATEX | - | CE | SE25-32-ST1251-ABS31-BDA08223DS-C003-32-LV-1 | 31060049 |

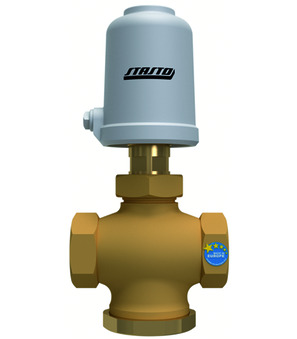

Pneumatically operated seat valve Series SE11-RT
NO; 3-way-type; Body Bronze; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -30...+170°C
| Female thread | DN | Diameter Actuator | Operating pressure | Control pressure | Medium temperature | Voltage | Voltage type | Design | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|
| RP 1 1/4" | 32 mm | 80 mm | 0...12 bar | 5...7 bar | -30...+170 °C | - | - | - | SE11-114-RT81 | 31060049 |
| Female thread | DN | Diameter Actuator | Operating pressure | Control pressure | Medium temperature | Voltage | Voltage type | Design | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|
| RP 1 1/4" | 32 mm | 80 mm | 0...12 bar | 5...7 bar | -30...+170 °C | 24VDC / 48V/50-60Hz | - | Standard | SE11-114-RT81-ABS31-C001-03-C002-31-6 | 31060050 |
| DN | Flange | Diameter Actuator | Operating pressure | Control pressure | Voltage | Voltage type | Design | Cable length | Approval | Type |
|---|---|---|---|---|---|---|---|---|---|---|
| 40 mm | PN40 | 50 mm | 0...6 bar | 5...10 bar | - | - | ATEX | - | - | SE25-40-ST51 |
| Female thread | DN | Diameter Actuator | Operating pressure | Control pressure | Medium temperature | Voltage | Voltage type | Design | Type |
|---|---|---|---|---|---|---|---|---|---|
| RP 1 1/4" | 32 mm | 80 mm | 0...12 bar | 5...7 bar | -30...+170 °C | 24VDC / 48V/50-60Hz | - | With integrated LED-yellow and VDR | SE11-114-RT81-ABS31-C001-03-C002-31-LV-2 |
| DN | Flange | Diameter Actuator | Operating pressure | Control pressure | Voltage | Voltage type | Design | Cable length | Approval | Type |
|---|---|---|---|---|---|---|---|---|---|---|
| 40 mm | PN40 | 50 mm | 0...6 bar | 5...10 bar | 230V/50-60Hz | - | ATEX | - | - | SE25-40-ST51-ABS30-C001-22-C002-31-6 |
| Female thread | DN | Diameter Actuator | Operating pressure | Control pressure | Medium temperature | Voltage | Voltage type | Design | Type |
|---|---|---|---|---|---|---|---|---|---|
| RP 1 1/4" | 32 mm | 80 mm | 0...12 bar | 5...7 bar | -30...+170 °C | 24VDC / 48V/50-60Hz | - | With integrated LED-yellow, VDR and PVC-cable (2 m) | SE11-114-RT81-ABS31-C001-03-C002-31-LVCV20-2 |
| DN | Flange | Diameter Actuator | Operating pressure | Control pressure | Voltage | Voltage type | Design | Cable length | Approval | Type |
|---|---|---|---|---|---|---|---|---|---|---|
| 40 mm | PN40 | 50 mm | 0...6 bar | 5...10 bar | 230V/50-60Hz | - | ATEX | - | - | SE25-40-ST51-ABS30-C001-22-C002-31-LV-1 |
| Female thread | DN | Diameter Actuator | Operating pressure | Control pressure | Medium temperature | Voltage | Voltage type | Design | Type |
|---|---|---|---|---|---|---|---|---|---|
| RP 1 1/4" | 32 mm | 80 mm | 0...12 bar | 5...7 bar | -30...+170 °C | 230V/50-60Hz | - | Standard | SE11-114-RT81-ABS31-C001-22-C002-31-6 |
| DN | Flange | Diameter Actuator | Operating pressure | Control pressure | Voltage | Voltage type | Design | Cable length | Approval | Type |
|---|---|---|---|---|---|---|---|---|---|---|
| 40 mm | PN40 | 50 mm | 0...6 bar | 5...10 bar | 230V/50-60Hz | - | ATEX | - | - | SE25-40-ST51-ABS30-C001-22-C002-31-LVCV20-1 |
| Female thread | DN | Diameter Actuator | Operating pressure | Control pressure | Medium temperature | Voltage | Voltage type | Design | Type |
|---|---|---|---|---|---|---|---|---|---|
| RP 1 1/4" | 32 mm | 80 mm | 0...12 bar | 5...7 bar | -30...+170 °C | 230V/50-60Hz | - | With integrated LED-yellow and VDR | SE11-114-RT81-ABS31-C001-22-C002-31-LV-1 |
| DN | Flange | Diameter Actuator | Operating pressure | Control pressure | Voltage | Voltage type | Design | Cable length | Approval | Type |
|---|---|---|---|---|---|---|---|---|---|---|
| 40 mm | PN40 | 50 mm | 0...6 bar | 5...10 bar | 24VDC / 48V/50-60Hz | - | ATEX | - | - | SE25-40-ST51-ABS30-C001-03-C002-31-6 |
| Female thread | DN | Diameter Actuator | Operating pressure | Control pressure | Medium temperature | Voltage | Voltage type | Design | Type |
|---|---|---|---|---|---|---|---|---|---|
| RP 1 1/4" | 32 mm | 80 mm | 0...12 bar | 5...7 bar | -30...+170 °C | 230V/50-60Hz | - | With integrated LED-yellow, VDR and PVC-cable (2 m) | SE11-114-RT81-ABS31-C001-22-C002-31-LVCV20-1 |
Pneumatically operated seat valve Series SE25-ST
NC; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For gaseous media; Closing with flow; Medium temperature -30...+170°C
| DN | Flange | Diameter Actuator | Operating pressure | Control pressure | Voltage | Voltage type | Design | Cable length | Approval | Type | Sequence |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 mm | PN40 | 50 mm | 0...6 bar | 5...10 bar | 24VDC / 48V/50-60Hz | - | ATEX | - | - | SE25-40-ST51-ABS30-C001-03-C002-31-LV-2 | 31060055 |
| 40 mm | PN40 | 50 mm | 0...6 bar | 5...10 bar | 24VDC / 48V/50-60Hz | - | ATEX | - | - | SE25-40-ST51-ABS30-C001-03-C002-31-LVCV20-2 | 31060056 |
| Female thread | DN | Diameter Actuator | Operating pressure | Control pressure | Medium temperature | Voltage | Voltage type | Design | Type |
|---|---|---|---|---|---|---|---|---|---|
| RP 1 1/4" | 32 mm | 125 mm | 0...16 bar | 2,8...3,8 bar | -30...+170 °C | - | - | - | SE11-114-RT1251 |
