Seat valves - pneumatically operated

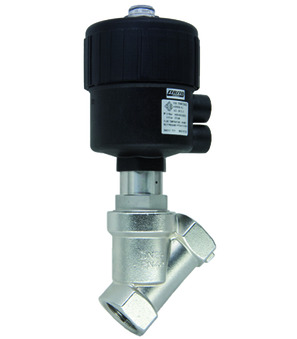

Pneumatically operated seat valve Series 21IA.GA
NO; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media and liquids; Medium temperature -40...+180°C
Data sheets, CAD files and further documents are available with the respective variant.
43Articles
Store guide
Other series
Pneumatically operated seat valve Series SE01-RT
Pneumatically operated seat valve Series SE02-RT
Pneumatically operated seat valve Series SE03-RT
Pneumatically operated seat valve Series SE01-BT
Pneumatically operated seat valve Series SE02-BT
Pneumatically operated seat valve Series SE03-BT
Pneumatically operated seat valve Series 21IA.GC
Pneumatically operated seat valve Series 21IA.GA
Pneumatically operated seat valve Series SE01-ST
Pneumatically operated seat valve Series SE02-ST
Pneumatically operated seat valve Series SE03-ST
Pneumatically operated seat valve Series SE06-GE
Pneumatically operated seat valve Series SE07-GE
Pneumatically operated seat valve Series SE08-GE
Pneumatically operated seat valve Series SE09-GT
Pneumatically operated seat valve Series SE23-ST
Pneumatically operated seat valve Series SE24-ST
Pneumatically operated seat valve Series SE25-ST
Pneumatically operated seat valve Series SE10-RT
Pneumatically operated seat valve Series SE11-RT
Pneumatically operated seat valve Series SE12-RT
Pneumatically operated seat valve Series SE13-RT
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
| 21IA4T15GA2 | G 1/2" | 15 mm | 0...25 bar | 5...10 bar | 1.766,10 lei | ||
| 21IA5T20GA2 | G 3/4" | 20 mm | 0...25 bar | 5...10 bar | 2.248,10 lei | ||
| 21IA6T25GA2 | G 1" | 25 mm | 0...25 bar | 5...10 bar | 2.788,20 lei | ||
| 21IA7T32GA2 | G 1 1/4" | 32 mm | 0...17 bar | 5...10 bar | 3.437,90 lei | ||
| 21IA8T40GA2 | G 1 1/2" | 40 mm | 0...11 bar | 5...10 bar | 3.884,20 lei | ||
| 21IA9T50GA2 | G 2" | 50 mm | 0...6 bar | 5...10 bar | 4.577,20 lei |
Varianten
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
21IA4T15GA2-ABS34-BDA08024CS-C003-32-6
Specifications
|
24VDC | G 1/2" | 15 mm | 0...25 bar | 2.285,80 lei | ||
21IA4T15GA2-ABS34-BDA08024CS-C003-31-CV20-6
Specifications
|
24VDC | G 1/2" | 15 mm | 0...25 bar | 2.337,30 lei | ||
21IA4T15GA2-ABS34-BDA08024CS-C003-32-LV-2
Specifications
|
24VDC | G 1/2" | 15 mm | 0...25 bar | 2.313,90 lei | ||
21IA4T15GA2-ABS34-BDA08223DS-C003-32-6
Specifications
|
220-230V/50-60Hz | G 1/2" | 15 mm | 0...25 bar | 2.285,80 lei | ||
21IA4T15GA2-ABS34-BDA08223DS-C003-31-CV20-6
Specifications
|
220-230V/50-60Hz | G 1/2" | 15 mm | 0...25 bar | 2.337,30 lei | ||
21IA4T15GA2-ABS34-BDA08223DS-C003-32-LV-1
Specifications
|
220-230V/50-60Hz | G 1/2" | 15 mm | 0...25 bar | 2.313,40 lei | ||
21IA5T20GA2-ABS34-BDA08024CS-C003-32-6
Specifications
|
24VDC | G 3/4" | 20 mm | 0...25 bar | 2.767,80 lei | ||
21IA5T20GA2-ABS34-BDA08024CS-C003-31-CV20-6
Specifications
|
24VDC | G 3/4" | 20 mm | 0...25 bar | 2.819,30 lei | ||
21IA5T20GA2-ABS34-BDA08024CS-C003-32-LV-2
Specifications
|
24VDC | G 3/4" | 20 mm | 0...25 bar | 2.795,80 lei | ||
21IA5T20GA2-ABS34-BDA08024DS-C003-32-6
Specifications
|
24V/50-60Hz | G 3/4" | 20 mm | 0...25 bar | 2.767,80 lei | ||
21IA5T20GA2-ABS34-BDA08223DS-C003-32-6
Specifications
|
220-230V/50-60Hz | G 3/4" | 20 mm | 0...25 bar | 2.767,80 lei | ||
21IA5T20GA2-ABS34-BDA08223DS-C003-31-CV20-6
Specifications
|
220-230V/50-60Hz | G 3/4" | 20 mm | 0...25 bar | 2.819,30 lei | ||
21IA5T20GA2-ABS34-BDA08223DS-C003-32-LV-1
Specifications
|
220-230V/50-60Hz | G 3/4" | 20 mm | 0...25 bar | 2.795,30 lei | ||
21IA6T25GA2-ABS34-BDA08024CS-C003-32-6
Specifications
|
24VDC | G 1" | 25 mm | 0...25 bar | 3.307,90 lei | ||
21IA6T25GA2-ABS34-BDA08024CS-C003-31-CV20-6
Specifications
|
24VDC | G 1" | 25 mm | 0...25 bar | 3.359,40 lei | ||
21IA6T25GA2-ABS34-BDA08024CS-C003-32-LV-2
Specifications
|
24VDC | G 1" | 25 mm | 0...25 bar | 3.335,90 lei | ||
21IA6T25GA2-ABS34-BDA08223DS-C003-32-6
Specifications
|
220-230V/50-60Hz | G 1" | 25 mm | 0...25 bar | 3.307,90 lei | ||
21IA6T25GA2-ABS34-BDA08223DS-C003-31-CV20-6
Specifications
|
220-230V/50-60Hz | G 1" | 25 mm | 0...25 bar | 3.359,40 lei | ||
21IA6T25GA2-ABS34-BDA08223DS-C003-32-LV-1
Specifications
|
220-230V/50-60Hz | G 1" | 25 mm | 0...25 bar | 3.335,40 lei | ||
21IA7T32GA2-ABS34-BDA08024CS-C003-32-6
Specifications
|
24VDC | G 1 1/4" | 32 mm | 0...17 bar | 3.957,60 lei | ||
21IA7T32GA2-ABS34-BDA08024CS-C003-31-CV20-6
Specifications
|
24VDC | G 1 1/4" | 32 mm | 0...17 bar | 4.009,10 lei | ||
21IA7T32GA2-ABS34-BDA08024CS-C003-32-LV-2
Specifications
|
24VDC | G 1 1/4" | 32 mm | 0...17 bar | 3.985,60 lei | ||
21IA7T32GA2-ABS34-BDA08223DS-C003-32-6
Specifications
|
220-230V/50-60Hz | G 1 1/4" | 32 mm | 0...17 bar | 3.957,60 lei | ||
21IA7T32GA2-ABS34-BDA08223DS-C003-31-CV20-6
Specifications
|
220-230V/50-60Hz | G 1 1/4" | 32 mm | 0...17 bar | 4.009,10 lei | ||
21IA7T32GA2-ABS34-BDA08223DS-C003-32-LV-1
Specifications
|
220-230V/50-60Hz | G 1 1/4" | 32 mm | 0...17 bar | 3.985,10 lei | ||
21IA8T40GA2-ABS34-BDA08024CS-C003-32-6
Specifications
|
24VDC | G 1 1/2" | 40 mm | 0...11 bar | 4.403,80 lei | ||
21IA8T40GA2-ABS34-BDA08024CS-C003-31-CV20-6
Specifications
|
24VDC | G 1 1/2" | 40 mm | 0...11 bar | 4.455,40 lei | ||
21IA8T40GA2-ABS34-BDA08024CS-C003-32-LV-2
Specifications
|
24VDC | G 1 1/2" | 40 mm | 0...11 bar | 4.431,90 lei | ||
21IA8T40GA2-ABS34-BDA08223DS-C003-32-6
Specifications
|
220-230V/50-60Hz | G 1 1/2" | 40 mm | 0...11 bar | 4.403,80 lei | ||
21IA8T40GA2-ABS34-BDA08223DS-C003-31-CV20-6
Specifications
|
220-230V/50-60Hz | G 1 1/2" | 40 mm | 0...11 bar | 4.455,40 lei | ||
21IA8T40GA2-ABS34-BDA08223DS-C003-32-LV-1
Specifications
|
220-230V/50-60Hz | G 1 1/2" | 40 mm | 0...11 bar | 4.431,40 lei | ||
21IA9T50GA2-ABS34-BDA08024CS-C003-32-6
Specifications
|
24VDC | G 2" | 50 mm | 0...6 bar | 5.096,90 lei | ||
21IA9T50GA2-ABS34-BDA08024CS-C003-31-CV20-6
Specifications
|
24VDC | G 2" | 50 mm | 0...6 bar | 5.148,40 lei | ||
21IA9T50GA2-ABS34-BDA08024CS-C003-32-LV-2
Specifications
|
24VDC | G 2" | 50 mm | 0...6 bar | 5.125,00 lei |
