Valves, butterfly valves and gate valves - automatically operated

List prices MSP RO
Varianten
Female thread DN Diameter Actuator Pressure range Control pressure Voltage Voltage type Design Cable length Approval Type Sequence
RP 2" 50 mm 125 mm 0...4 bar 2,2...10 bar 220-230V/50-60Hz AC With moulded PVC-cable (2 m) - CE PI03-20-NZS-1252-ABS31-BDA08223DS-C003-31-CV20-6 31220096
RP 2" 50 mm 125 mm 0...4 bar 2,2...10 bar 220-230V/50-60Hz AC With integrated LED-yellow and VDR - CE PI03-20-NZS-1252-ABS31-BDA08223DS-C003-32-LV-1 31220097

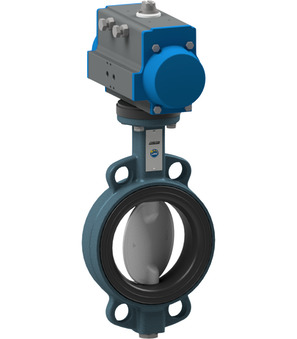

Butterfly valve with pneumatic actuator Series BUW6-DE-D2

Butterfly valve with pneumatic actuator Series BUW6-DE-D2

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar

Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DE-D2 Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DE-D2
To Series: Butterfly valve with pneumatic actuator Series BUW6-DE-D2
Grundversion
DN Length Pressure range Disc Switch type Contact material Material of case Voltage Design Type Sequence
50 mm 43 mm 0...10 bar Zinc plated steel - - - - - BUW6-050-DUE-D22 31230000
50 mm 43 mm 0...10 bar Zinc plated steel - - - - - BUW6-050-DUN-D22 31230001
Varianten
DN Length Pressure range Disc Switch type Contact material Material of case Voltage Design Type Sequence
50 mm 43 mm 0...10 bar Zinc plated steel - - - 24VDC / 48V/50-60Hz Standard BUW6-050-DUE-D22-ABS54-C001-03-C002-31-6 31230002
Pinch valve Series PI04

Pinch valve Series PI04

NO; Connection parts 1.4435; Tube NBR food-safe; Control pressure has to be adjusted acc. to diagram in data-sheet; Medium temperature -20...+80°C
Schlauchquetschventil Serie PI04 Schlauchquetschventil Serie PI04
To Series: Pinch valve Series PI04
Grundversion
Female thread DN Diameter Actuator Pressure range Voltage Voltage type Design Cable length Approval Type Sequence
RP 1/2" 15 mm 50 mm 0...6 bar - - - - - PI04-12-NZS-51 31230002
Varianten
Female thread DN Diameter Actuator Pressure range Voltage Voltage type Design Cable length Approval Type Sequence
RP 1/2" 15 mm 50 mm 0...6 bar 230V/50-60Hz - Standard - - PI04-12-NZS-51-ABS30-C001-22-C002-31-6 31230003
BUW6-050-DUE-D22-ABS54-C001-03-C002-31-LV-2
BUW6-050-DUE-D22
Butterfly valve with pneumatic actuator Series BUW6-DE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Disc Stahl verzinkt; Actuator PAD063
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
To Series: Butterfly valve with pneumatic actuator Series BUW6-DE-D2
DN Length Pressure range Disc Switch type Contact material Material of case Voltage Design Type
50 mm 43 mm 0...10 bar Zinc plated steel - - - 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR BUW6-050-DUE-D22-ABS54-C001-03-C002-31-LV-2
PI04-12-NZS-51-ABS30-C001-03-C002-31-6
PI04-12-NZS-51
Pinch valve Series PI04; NO; Connection parts 1.4435; Tube NBR food-safe; Control pressure has to be adjusted acc. to diagram in data-sheet; Medium temperature -20...+80°C; RP 1/2"; DN 15mm; Pressure range 0-6bar; Diameter Actuator 50mm
ABS30
Mounted pilot valve Series ABS; Silencer; Suitable for Pneumatically operated seat valves Series SE, Pinch valves Series PI03, Series PI04; 3/2-Wegemagnetventil (PS125-18-C); Standard coil C001; Connector size 22mm; Actuator 50 mm
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
To Series: Pinch valve Series PI04
Female thread DN Diameter Actuator Pressure range Voltage Voltage type Design Cable length Approval Type
RP 1/2" 15 mm 50 mm 0...6 bar 24VDC / 48V/50-60Hz - Standard - - PI04-12-NZS-51-ABS30-C001-03-C002-31-6
BUW6-050-DUE-D22-ABS54-C001-03-C002-31-LVCV20-2
BUW6-050-DUE-D22
Butterfly valve with pneumatic actuator Series BUW6-DE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Disc Stahl verzinkt; Actuator PAD063
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
Connector; Connector size 22mm; With integrated LED-yellow, VDR and PVC-cable (2 m); Voltage 24VAC/DC
To Series: Butterfly valve with pneumatic actuator Series BUW6-DE-D2
DN Length Pressure range Disc Switch type Contact material Material of case Voltage Design Type
50 mm 43 mm 0...10 bar Zinc plated steel - - - 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) BUW6-050-DUE-D22-ABS54-C001-03-C002-31-LVCV20-2
PI04-12-NZS-51-ABS30-C001-03-C002-31-LV-2
PI04-12-NZS-51
Pinch valve Series PI04; NO; Connection parts 1.4435; Tube NBR food-safe; Control pressure has to be adjusted acc. to diagram in data-sheet; Medium temperature -20...+80°C; RP 1/2"; DN 15mm; Pressure range 0-6bar; Diameter Actuator 50mm
ABS30
Mounted pilot valve Series ABS; Silencer; Suitable for Pneumatically operated seat valves Series SE, Pinch valves Series PI03, Series PI04; 3/2-Wegemagnetventil (PS125-18-C); Standard coil C001; Connector size 22mm; Actuator 50 mm
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
To Series: Pinch valve Series PI04
Female thread DN Diameter Actuator Pressure range Voltage Voltage type Design Cable length Approval Type
RP 1/2" 15 mm 50 mm 0...6 bar 24VDC / 48V/50-60Hz - With integrated LED-yellow and VDR - - PI04-12-NZS-51-ABS30-C001-03-C002-31-LV-2
BUW6-050-DUE-D22-ABS54-C001-22-C002-31-6
BUW6-050-DUE-D22
Butterfly valve with pneumatic actuator Series BUW6-DE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Disc Stahl verzinkt; Actuator PAD063
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
To Series: Butterfly valve with pneumatic actuator Series BUW6-DE-D2
DN Length Pressure range Disc Switch type Contact material Material of case Voltage Design Type
50 mm 43 mm 0...10 bar Zinc plated steel - - - 230V/50-60Hz Standard BUW6-050-DUE-D22-ABS54-C001-22-C002-31-6
PI04-12-NZS-51-ABS30-C001-03-C002-31-LVCV20-2
PI04-12-NZS-51
Pinch valve Series PI04; NO; Connection parts 1.4435; Tube NBR food-safe; Control pressure has to be adjusted acc. to diagram in data-sheet; Medium temperature -20...+80°C; RP 1/2"; DN 15mm; Pressure range 0-6bar; Diameter Actuator 50mm
ABS30
Mounted pilot valve Series ABS; Silencer; Suitable for Pneumatically operated seat valves Series SE, Pinch valves Series PI03, Series PI04; 3/2-Wegemagnetventil (PS125-18-C); Standard coil C001; Connector size 22mm; Actuator 50 mm
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LVCV20-2
Connector; Connector size 22mm; With integrated LED-yellow, VDR and PVC-cable (2 m); Voltage 24VAC/DC
To Series: Pinch valve Series PI04
Female thread DN Diameter Actuator Pressure range Voltage Voltage type Design Cable length Approval Type
RP 1/2" 15 mm 50 mm 0...6 bar 24VDC / 48V/50-60Hz - With integrated LED-yellow, VDR and PVC-cable (2 m) - - PI04-12-NZS-51-ABS30-C001-03-C002-31-LVCV20-2
BUW6-050-DUE-D22-ABS54-C001-22-C002-31-LV-1
BUW6-050-DUE-D22
Butterfly valve with pneumatic actuator Series BUW6-DE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Disc Stahl verzinkt; Actuator PAD063
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-LV-1
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: Butterfly valve with pneumatic actuator Series BUW6-DE-D2
DN Length Pressure range Disc Switch type Contact material Material of case Voltage Design Type
50 mm 43 mm 0...10 bar Zinc plated steel - - - 230V/50-60Hz With integrated LED-yellow and VDR BUW6-050-DUE-D22-ABS54-C001-22-C002-31-LV-1
PI04-12-NZS-51-ABS30-BDA08223DS-C002-31-LV-1
PI04-12-NZS-51
Pinch valve Series PI04; NO; Connection parts 1.4435; Tube NBR food-safe; Control pressure has to be adjusted acc. to diagram in data-sheet; Medium temperature -20...+80°C; RP 1/2"; DN 15mm; Pressure range 0-6bar; Diameter Actuator 50mm
ABS30
Mounted pilot valve Series ABS; Silencer; Suitable for Pneumatically operated seat valves Series SE, Pinch valves Series PI03, Series PI04; 3/2-Wegemagnetventil (PS125-18-C); Standard coil C001; Connector size 22mm; Actuator 50 mm
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C002-31-LV-1
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: Pinch valve Series PI04
Female thread DN Diameter Actuator Pressure range Voltage Voltage type Design Cable length Approval Type
RP 1/2" 15 mm 50 mm 0...6 bar 220-230V/50-60Hz AC With integrated LED-yellow and VDR - CE PI04-12-NZS-51-ABS30-BDA08223DS-C002-31-LV-1
BUW6-050-DUE-D22-ABS54-C001-22-C002-31-LVCV20-1
BUW6-050-DUE-D22
Butterfly valve with pneumatic actuator Series BUW6-DE-D2; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Disc Stahl verzinkt; Actuator PAD063
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-LVCV20-1
Connector; Connector size 22mm; With integrated LED-yellow, VDR and PVC-cable (2 m); Voltage 230VAC/DC
To Series: Butterfly valve with pneumatic actuator Series BUW6-DE-D2
DN Length Pressure range Disc Switch type Contact material Material of case Voltage Design Type
50 mm 43 mm 0...10 bar Zinc plated steel - - - 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) BUW6-050-DUE-D22-ABS54-C001-22-C002-31-LVCV20-1
PI04-12-NZS-51-ABS30-BDA08223DS-C002-31-LVCV20-1
PI04-12-NZS-51
Pinch valve Series PI04; NO; Connection parts 1.4435; Tube NBR food-safe; Control pressure has to be adjusted acc. to diagram in data-sheet; Medium temperature -20...+80°C; RP 1/2"; DN 15mm; Pressure range 0-6bar; Diameter Actuator 50mm
ABS30
Mounted pilot valve Series ABS; Silencer; Suitable for Pneumatically operated seat valves Series SE, Pinch valves Series PI03, Series PI04; 3/2-Wegemagnetventil (PS125-18-C); Standard coil C001; Connector size 22mm; Actuator 50 mm
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C002-31-LVCV20-1
Connector; Connector size 22mm; With integrated LED-yellow, VDR and PVC-cable (2 m); Voltage 230VAC/DC
To Series: Pinch valve Series PI04
Female thread DN Diameter Actuator Pressure range Voltage Voltage type Design Cable length Approval Type
RP 1/2" 15 mm 50 mm 0...6 bar 220-230V/50-60Hz AC With integrated LED-yellow, VDR and PVC-cable (2 m) - CE PI04-12-NZS-51-ABS30-BDA08223DS-C002-31-LVCV20-1
Butterfly valve with pneumatic actuator Series BUW6-DE-D2

Butterfly valve with pneumatic actuator Series BUW6-DE-D2

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar

Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DE-D2 Absperrklappe mit Druckluftdrehantrieb Serie BUW6-DE-D2
To Series: Butterfly valve with pneumatic actuator Series BUW6-DE-D2
Grundversion
DN Length Pressure range Disc Switch type Contact material Material of case Voltage Design Type Sequence
65 mm 46 mm 0...10 bar Zinc plated steel - - - - - BUW6-065-DUE-D22 31230009
Varianten
DN Length Pressure range Disc Switch type Contact material Material of case Voltage Design Type Sequence
50 mm 43 mm 0...10 bar Zinc plated steel Crouzet 831613 Silver-nickel Plastic - - BUW6-050-DUE-D22-EB0X01 31230008
65 mm 46 mm 0...10 bar Zinc plated steel - - - 24VDC / 48V/50-60Hz Standard BUW6-065-DUE-D22-ABS54-C001-03-C002-31-6 31230010
