Pressure switches, measuring instruments and flow monitors
FM24-34-W-60
Flow monitors Series FM24; Viscosity compensated ...600mm²/s; Body Stainless steel 1.4571; For any mounting position; Medium temperature Max. 120°C; Oil scale; Application: Monitoring of lubrication; Switch unit Schließer; Connection 3/4"; Switching range 20...60L/min; Maximum pressure 300bar; U max. 250V; I max. 3A; Length 130mm
To Series: Flow monitors Series FM24
Connection Length Switch unit U max. I max. Maximum pressure Switching range Type
3/4" 130 mm NO contact 250 V 3 A 300 bar 20...60 l/min FM24-34-W-60
FM24-10-N-30-03
flow monitors series FM24; viscosity compensated ...600mm²/s; body nickel plated brass; for any mounting position; medium temperature max. 120°C; oil scale; application: monitoring of lubrication; switch unit: 2 change-over contact; connection G1"; switching range 10...30l/min; maximum pressure 250bar; U max. 250V; I max. 1,5A; length 130mm; 2. Contact opposite
To Series: Flow monitors Series FM24
Connection Length Switch unit U max. I max. Maximum pressure Switching range Type
1" 130 mm Change-over contact 250 V 1,5 A 250 bar 10...30 l/min FM24-10-N-30-03
Flow monitors Series FM24

Flow monitors Series FM24

Viscosity compensated ...600mm²/s; Body Stainless steel 1.4571; For any mounting position; Medium temperature Max. 120°C; Oil scale; Application: Monitoring of lubrication
To Series: Flow monitors Series FM24
Grundversion
Connection Length Switch unit U max. I max. Maximum pressure Switching range Type Sequence
1" 130 mm NO contact 250 V 3 A 300 bar 15...45 l/min FM24-10-W-24-01 33060006
1" 130 mm NO contact 250 V 3 A 300 bar 15...45 l/min FM24-10-W-24-02 33060007
Flow monitors Series FM24

Flow monitors Series FM24

Viscosity compensated ...600mm²/s; Body Nickel plated brass; For any mounting position; Medium temperature Max. 120°C; Oil scale; Application: Monitoring of lubrication

To Series: Flow monitors Series FM24
Grundversion
Connection Length Switch unit U max. I max. Maximum pressure Switching range Type Sequence
1" 130 mm Change-over contact 250 V 1,5 A 250 bar 15...45 l/min FM24-10-N-45-01 33060007
1" 130 mm Change-over contact 250 V 1,5 A 250 bar 30...110 l/min FM24-10-N-110-01 33060008
G 1" 130 mm NO contact 250 V 3 A 250 bar 2...8 l/min FM24-10-N-8 33060009

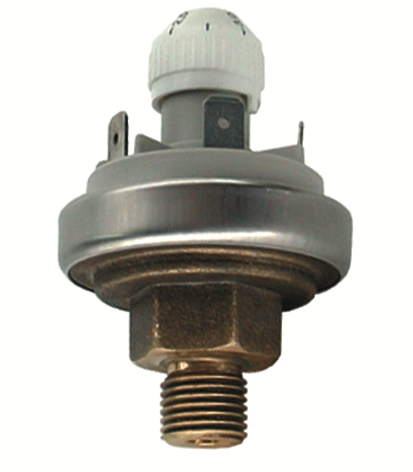

Pressure switch Series PS01

Pressure switch Series PS01

Change-over contact; Connection Brass; Setting scale; 250VAC/6A; 24VDC/2A; Protection class See Protection cap (Max. IP65)

To Series: Pressure switch Series PS01
Grundversion
Male thread Hysteresis range Overpressure protection Diaphragm Range of adjustment Type Sequence
G 1/4" 20 mbar 1 bar FKM 50...250 mbar PS01-14F-50/250-01 33070000
G 1/4" 5 mbar 0,5 bar NBR 50...250 mbar PS01-14E-10/50-01 33070001
G 1/4" 20 mbar 1 bar NBR 50...250 mbar PS01-14E-50/250-01 33070002
G 1/4" 50 mbar 0,5 bar NBR 100...500 mbar PS01-14N-100/500-01 33070003
G 1/4" 3 mbar 0,5 bar - 5...20 mbar PS01-14N-5/20 33070004
G 1/4" 500 mbar 10 bar FKM 1000...3000 mbar PS01-14V-1000/3000 33070005
G 1/8" 50 mbar 1 bar NBR 100...500 mbar PS01-18N-100/500 33070006
G 1/8" 20 mbar 1 bar NBR 50...250 mbar PS01-18N-50/250 33070007
Pressure transmitter Series PT02

Pressure transmitter Series PT02

Body, Wetted parts Stainless steel 1.4404; Pressure sensor Stainless steel AISI 316L; Seal NBR; Outlet signal 0...10V Proportional to applied pressure; Male thread 1/4"; Accuracy 1% of full pressure range
To Series: Pressure transmitter Series PT02
Grundversion
Connection Measuring range Type Sequence
1/4" 0...10 bar PT02-14N-010-010 33090000
1/4" 0...16 bar PT02-14N-016-010 33090001
1/4" 0...250 bar PT02-14N-250-010 33090002
1/4" 0...250 bar PT02-14N-0,25-010 33090003
FM03-14-N-1
Flow monitors Series FM03-N; Viscosity compensated 32...600mm²/s; Body Nickel plated brass; For any mounting position; Medium temperature Max. 120°C; Oil scale; NO contact; Application: Monitoring of lubrication; Connection 1/4"; Switching range 0,2…1L/min; Maximum pressure 300bar; U max. 230V; I max. 3A; Length 90mm
To Series: Flow monitors Series FM03-N
Connection Length U max. I max. Maximum pressure Switching range Type
1/4" 90 mm 230 V 3 A 300 bar 0,2…1 L/min FM03-14-N-1
