Pressure switches, measuring instruments and flow monitors
PS17-14N-V0
Electronic pressure switch Series PS17; Digital display, 4 digits; Wetted parts Stainless steel 1.4404; 2 Freely adjustable switching outputs (PNP/NPN); Reversible display bar/PSI, Accuracy 0,5% of full pressure range; Window/hysteresis function free programmable; Power supply 15...35VDC; Electric connection M12 (IP67) 4-pin; Pressure range -1...0bar; Connection G 1/4"; Pressure range -1...0bar
To Series: Electronic pressure switch Series PS17
Connection Pressure range Range of adjustment Type
G 1/4" - -1...0 bar PS17-14N-V0

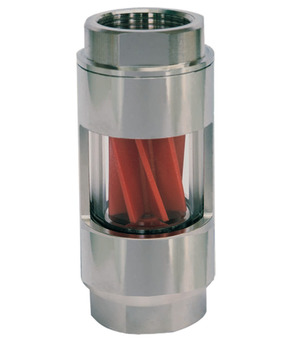

Flow indicator Series FM26

Flow indicator Series FM26

Body Nickel plated brass; Medium temperature Max. 90°C; Application: Water
To Series: Flow indicator Series FM26
Grundversion
Connection Length Maximum pressure Indicating range Type Sequence
1/4" 59 mm 10 bar 1...10 l/min FM26-14-N-10 32980000
1/2" 71 mm 8 bar 3...30 l/min FM26-15-N-30 32980001
3/8" 71 mm 8 bar 2...20 l/min FM26-38-N-20 32980002
Pressure transmitter Series PT08

Pressure transmitter Series PT08

Body, Wetted parts Stainless steel 1.4571; Outlet signal 4...20 mA Proportional to applied pressure; Male thread 1/2"; Accuracy 0,5% of full pressure range
To Series: Pressure transmitter Series PT08
Grundversion
Measuring range Type Sequence
0...10 bar PT08-12N-010-420 32990000
0...0,25 bar PT08-12N-0,25-420 32990001
0...250 bar PT08-12N-250-420 32990002
-1...0 bar PT08-12N-V-420 32990003
-1...0 bar PT08-12N-100V0,1-01 32990004
-1...0 bar PT08-12N-0,16-420 32990005
Flow indicator Series FM25

Flow indicator Series FM25

Temperature range -10…+100°C; Pressure Max. 16bar; Application: Water; Pressure drop 0,25Bar

To Series: Flow indicator Series FM25
Grundversion
Connection Material Range Type Sequence
G 3/8" Nickel plated brass 0,8...8 l/min FM25-38-N-8 33000000
G 1/2" 1.4305 - FM25-10-I-40 33000001
G 1" Nickel plated brass 1,6...40 l/min FM25-10-N-40 33000002
G 1 1/4" 1.4305 8...80 l/min FM25-114-I-80 33000003
G 1 1/4" Nickel plated brass 8...80 l/min FM25-114-N-80 33000004
G 1/2" 1.4305 1,4...12 l/min FM25-12-I-12 33000005
G 1/2" Nickel plated brass 1,4...12 l/min FM25-12-N-12 33000006
G 1/4" Nickel plated brass 0,7...4 l/min FM25-14-N-4 33000007
G 3/4" 1.4305 1,4...25 l/min FM25-34-I-25 33000008
G 3/4" Nickel plated brass 1,4...25 l/min FM25-34-N-25 33000009
