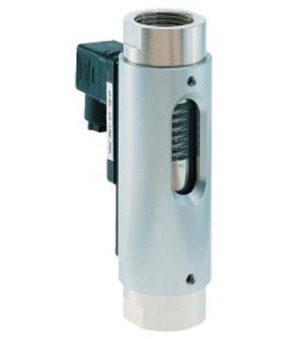

Flow monitors With Inspection glass Series RVO/U; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 1"; Switching range 15…45L/min; Maximum pressure 10bar; U max. 250V; I max. 3A; Length 158,5mm
Country of origin: Germany
Weight: 1.27 Kg
Short Itemnumber: RV0U145MS
Flow monitors With Inspection glass Series RVO/U; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 1"; Switching range 15…45L/min; Maximum pressure 10bar; U max. 250V; I max. 3A; Length 158,5mm
Technical specifications
| Connection | 1" |
|---|---|
| Switching range | 15...45 l/min |
| Maximum pressure | 10 bar |
| U max. | 250 V |
| Connection | 1" |
| Switching range | 15...45 l/min |
| Maximum pressure | 10 bar |
| U max. | 250 V |
| I max. | 3 A |
| Length | 158,5 mm |
RV0/U-1/45-MS
