CH009-15-N

Check valve Series CH009-N; Wafer type; Body 1.4408; Disc 1.4404; Seal NBR; Medium temperature -25...95°C; DN 15mm; Length 17mm; Nominal flange pressure PN6/10/16/25/40, ANSI150/300

To Series: Check valve Series CH009-N

DN	Length	Flange	Type
15 mm	17 mm	PN6/10/16/25/40, ANSI150/300	CH009-15-N

CH084-20

Check valve; Flanged type; Body AISI 316; Metal sealing; Medium temperature -60...300°C; DN 20mm; Length 150mm; Nominal flange pressure PN40

To Series: Rückschlagventil Serie CH084

CH009-20-N

Check valve Series CH009-N; Wafer type; Body 1.4408; Disc 1.4404; Seal NBR; Medium temperature -25...95°C; DN 20mm; Length 20mm; Nominal flange pressure PN6/10/16/25/40, ANSI150/300

To Series: Check valve Series CH009-N

DN	Length	Flange	Type
20 mm	20 mm	PN6/10/16/25/40, ANSI150/300	CH009-20-N

CH084-25

Check valve; Flanged type; Body AISI 316; Metal sealing; Medium temperature -60...300°C; DN 25mm; Length 160mm; Nominal flange pressure PN40

To Series: Rückschlagventil Serie CH084

Check valve Series CH009-N

Wafer type; Body 1.4408; Disc 1.4404; Seal NBR; Medium temperature -25...95°C

To Series: Check valve Series CH009-N

Grundversion

DN	Length	Flange	Type	Sequence
25 mm	22 mm	PN6/10/16/25/40, ANSI150/300	CH009-25-N	34100002
32 mm	28 mm	PN6/10/16/25/40, ANSI150/300	CH009-32-N	34100003
40 mm	32 mm	PN6/10/16/25/40, ANSI150/300	CH009-40-N	34100004
50 mm	40 mm	PN6/10/16/25/40, ANSI150/300	CH009-50-N	34100005
65 mm	46 mm	PN6/10/16/25/40, ANSI150/300	CH009-65-N	34100006
80 mm	50 mm	PN6/10/16/25/40, ANSI150/300	CH009-80-N	34100007
80 mm	50 mm	PN6/10/16/25/40, ANSI150/300	CH009-80-N-3C	34100008
100 mm	60 mm	PN6/10/16/25/40, ANSI150/300	CH009-100-N	34100009

Swing check valve Series CH030

Flanged type; Reset by its own weight; Body Cast iron EN-GJL-250; Seal Metallic; Medium temperature 0...200°C; Nominal flange pressure 16; Flap material 1.4027

To Series: Swing check valve Series CH030

Grundversion

DN	Length	Type	Sequence
100 mm	300 mm	CH030-100	34120000
150 mm	400 mm	CH030-150	34120001
200 mm	500 mm	CH030-200	34120002
250 mm	600 mm	CH030-250	34120003

Ball check valve Series CH053

Flanged type; Nominal pressure PN16; Body Ductile iron EN-GJS-500-7; Ball Steel/NBR; Medium temperature -10...70°C

To Series: Ball check valve Series CH053

Grundversion

DN	Length	Type	Sequence
100 mm	300 mm	CH053-100	34130000
150 mm	400 mm	CH053-150	34130001

CH056-65

Swing check valve Series CH056; Wafer type; PN10; Reset by spring; Body, Disc Polypropylen; Seal FKM; DN 65mm; Length 20mm; Operating pressure Max. 6bar

To Series: Swing check valve Series CH056

DN	Length	Operating pressure	Type
65 mm	20 mm	Max. 6 bar	CH056-65

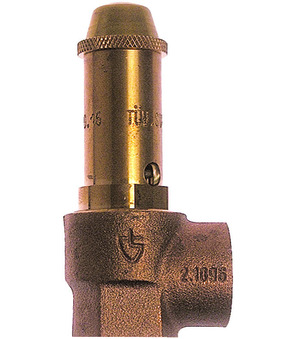

SV04-12-10-1

Safety valve Series SV04; With twist lifting; Body Bronze; Seal NBR; Application: Water, Neutral liquids; Medium temperature -30...130°C; G 1/2"; DN 10mm; Set pressure 1Bar

To Series: Safety valve Series SV04

Female thread	DN	Set pressure	Type
G 1/2"	10 mm	1 bar	SV04-12-10-1
