BUWC-700-DSE-G

BUWC-700-DSE-G

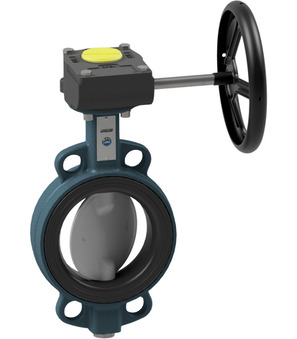

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 700mm; Length 165mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 320.416 Kg
Short Itemnumber: BUWC700DSEG
https://www.stasto.ro/web/image/product.template/147852/image_1920?unique=2cf2396

butterfly valve with manual gear box; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10; medium temperature -10...+130°C; pressure range 0...10bar; DN 700mm; length 165mm

71.838,60 lei 71838.6 RON 71.838,60 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10bar
Brand STASTO
Pressure range 0...10bar
Brand STASTO
BUWC-700-DSE-B x 1.0 Pcs
Butterfly valve with bare shaft BUWC-700-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 700mm; Length 165mm; Pressure range 0…10bar; Flange PN10
GB02-25/7020-01
GB02-25/7020-01 x 1.0 Pcs
GB02-25/7020-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 5500Nm; Flange ISO5211 F25; Diameter/Key 70/20mm
