Butterfly valve with manual gear box Series BUW6-DSN-G Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Other materiales - A04
  5. Butterfly valve with manual gear box Series BUW6-DSN-G
  6. BUWB-600-DSN-G

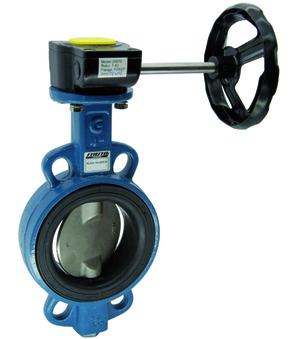

Butterfly valve with manual gear box BUWB-600-DSN-G

Butterfly valve with manual gear box BUWB-600-DSN-G

Butterfly valve with manual gear box Series BUWB-DSN-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 600mm; Length 154mm

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUWB600DSNG
https://www.stasto.ro/web/image/product.template/179531/image_1920?unique=f96ddcc

butterfly valve with manual gear box series BUWB-DSN-G; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10; medium temperature -10...+100°C; pressure range 0...6bar; DN 600mm; length 154mm

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • DN
  • Length

This combination does not exist.

Availability:
Contact Us

Share

DN 500 mm
Length 127 mm

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Assembly and Operating Instructions
1
Data sheet_Butterfly valve with manual gear box Series BUW6-DSN-G_EN.pdf
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s ruční převodovkou série BUW6-DSN-G_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Handgetriebe Serie BUW6-DSN-G_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pillangószelep kézi forgatókerékkel sorozat BUW6-DSN-G_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z przekładnią Seria BUW6-DSN-G_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa z ročnim polžastim pogonom serija BUW6-DSN-G_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa ručnom menjačkom kutijom serije BUW6-DSN-G_SRLATIN.pdf
Download
BUWB-600-DSN-B x 1.0
Butterfly valve with bare shaft BUWB-600-DSN-B
Butterfly valve with bare shaft Series BUWB-DSN-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 600mm; Length 154mm; Pressure range 0…6bar; Flange PN10
Add to Cart
GB02-16/6018-01
GB02-16/6018-01 x 1.0
GB02-16/6018-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 3250Nm; Flange ISO5211 F16; Diameter/Key 60/18mm
Add to Cart
