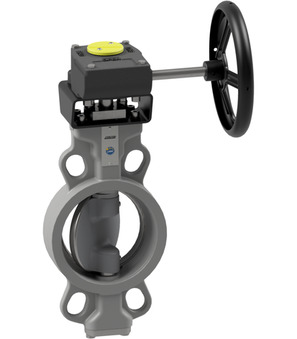

Butterfly valve with manual gear box BUW9-250-CSRQ-G
Butterfly valve with manual gear box Series BUW-CSR-G; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel 1.0619; Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Pressure range 0...25bar; Medium temperature -10...+230°C; DN 250mm; Length 69mm; Nominal flange pressure PN10/16/25/ANSI150
Intrastat No.: 84818085
Country of origin: Italy
Weight: 39.674 Kg
Short Itemnumber: BUW9250CSRQG
Country of origin: Italy
Weight: 39.674 Kg
Short Itemnumber: BUW9250CSRQG
butterfly valve with manual gear box series BUW-CSR-G; wafer type; double eccentric; length according to EN558−1R20; body steel 1.0619; epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; pressure range 0...25bar; medium temperature -10...+230°C; DN 250mm; length 69mm; nominal flange pressure PN10/16/25/ANSI150
