Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4 Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Butterfly valves - pneumatically operated
  5. Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4
  6. BUW9-125-SSIS-D42

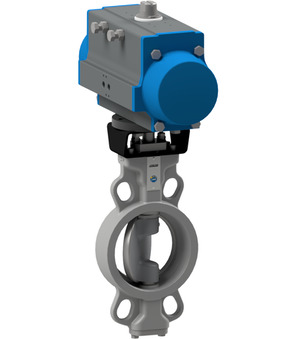

Butterfly valve with pneumatic actuator BUW9-125-SSIS-D42

Butterfly valve with pneumatic actuator BUW9-125-SSIS-D42

Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 125mm; Length 56mm; Actuator PAD125-H

Intrastat No.: 84818085
Country of origin: Italy
Weight: 21.48 Kg
Short Itemnumber: BUW9125SSISD42
https://www.stasto.ro/web/image/product.template/88504/image_1920?unique=b9bbba7

Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 125mm; Length 56mm; Actuator PAD125-H

12.366,50 lei 12366.5 RON 12.366,50 lei

Not Available For Sale

  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 125 mm
Length 56 mm
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD125-H

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4_EN.pdf
Download
CAD / 3D
1
CADSTEP_BUW9125SSISD42.stp
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s otočným pneumatickým pohonem série BUW9-SSIS-D4_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjældventil med pneumatisk drejedrev Serie BUW9-SSIS-D4_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Druckluftdrehantrieb Serie BUW9-SSIS-D4_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Πεταλούδα απομόνωσης με πνευματικό περιστροφικό ενεργοποιητή Σειρά BUW9-SSIS-D4_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de mariposa con actuador rotativo neumático Serie BUW9-SSIS-D4_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Sulkuventtiili pneumaattisella kääntötoimilaitteella Sarja BUW9-SSIS-D4_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne papillon avec actionneur rotatif pneumatique Série BUW9-SSIS-D4_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Leptirasti zaporni ventil s pneumatskim rotacijskim pogonom Serija BUW9-SSIS-D4_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BUW9-SSIS-D4_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Serranda di intercettazione con attuatore pneumatico rotativo Serie BUW9-SSIS-D4_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjeldventil med pneumatisk dreieaktuator Serie BUW9-SSIS-D4_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Vlinderklep met pneumatische draaiaandrijving Serie BUW9-SSIS-D4_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z napędem pneumatycznym Seria BUW9-SSIS-D4_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă fluture cu actuator rotativ pneumatic serie BUW9-SSIS-D4_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BUW9-SSIS-D4_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa pneumatskim aktuatorom serije BUW9-SSIS-D4_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjällventil med pneumatiskt vriddon Serie BUW9-SSIS-D4_SV.pdf
Download
BUW9-125-SSIS-B x 1.0
Butterfly valve with bare shaft BUW9-125-SSIS-B
Butterfly valve with bare shaft Series BUW9-SSIS-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 125mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150
Add to Cart
Pneumatic actuator PAD125-H
PAD125-H x 1.0
Pneumatic actuator PAD125-H
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm
Add to Cart
