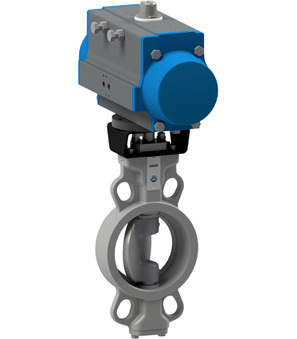

Butterfly valve with pneumatic actuator BUW9-100-CSIS-S12

Butterfly valve with pneumatic actuator BUW9-100-CSIS-S12

butterfly valve with pneumatic actuator series BUW9-CSIS-S; wafer type; double eccentric; length according to EN558−1R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 100mm; length 52mm; pressure range 0...16bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1405-H

Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 30.47 Kg
Short Itemnumber: BUW9100CSISS12
https://www.stasto.ro/web/image/product.template/237469/image_1920?unique=5dea311

butterfly valve with pneumatic actuator series BUW9-CSIS-S; wafer type; double eccentric; length according to EN558−1R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 630; seat Inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+425°C; DN 100mm; length 52mm; pressure range 0...16bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1405-H

11.966,10 lei 11966.1 RON 11.966,10 lei

Not Available For Sale

excl. tax
  • DN
  • Length
  • Flange
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
DN 100 mm
Length 52 mm
Flange PN10/16/25, ANSI150
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
DN 100 mm
Length 52 mm
Flange PN10/16/25, ANSI150

BUW9-100-CSIS-S12

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BUW9-100-CSIS-B x 1.0 Pcs
Butterfly valve with bare shaft BUW9-100-CSIS-B
Butterfly valve with bare shaft Series BUW9-CSIQ-B; Wafer type; Double eccentric; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 100mm; Length 52mm; Nominal flange pressure PN10/16/25/ANSI150
Pneumatic actuator PAS1405-H
PAS1405-H x 1.0 Pcs
Pneumatic actuator PAS1405-H
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 114Nm
APKTGB0051 x 1.0 Pcs
APKTGB0051
Mounting bracket For butterfly valve; DN125...150-F07 -Square 14; Actuator F10-27
