  6. BUW9-080-YYIP-S12

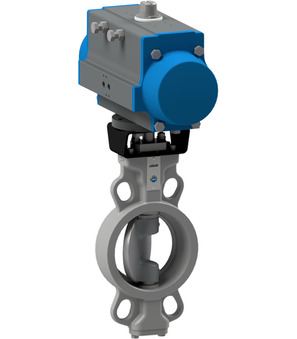

BUW9-080-YYIP-S12

BUW9-080-YYIP-S12

butterfly valve with pneumatic actuator; wafer type; double eccentric; length according to EN558−1R20; body, disc and shaft super duplex; seat inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+315°C; DN 80mm; length 46mm; pressure range 0…16bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1405-H

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW9080YYIPS12
https://www.stasto.ro/web/image/product.template/224200/image_1920?unique=0c58904

butterfly valve with pneumatic actuator; wafer type; double eccentric; length according to EN558−1R20; body, disc and shaft super duplex; seat inconel 625; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+315°C; DN 80mm; length 46mm; pressure range 0…16bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS1405-H

12.965,20 lei 12965.2 RON 12.965,20 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW9-080-YYIP-B x 1.0
    BUW9-080-YYIP-B
    butterfly valve with bare shaft; wafer type; double eccentric; length according to EN558−1R20; body, disc and shaft super duplex; seat Inconel 625; medium temperature -10...+315°C; pressure range 0...25bar; DN 80mm; length 46mm; nominal flange pressure PN10/16/25/ANSI150
    Add to Cart
    Pneumatic actuator PAS1405-H
    PAS1405-H x 1.0
    Pneumatic actuator PAS1405-H
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 114Nm
    Add to Cart
    APKTGB0051 x 1.0
    APKTGB0051
    Mounting bracket For butterfly valve; DN125...150-F07 -Square 14; Actuator F10-27
