BUW6-400-DSVS-G

BUW6-400-DSVS-G

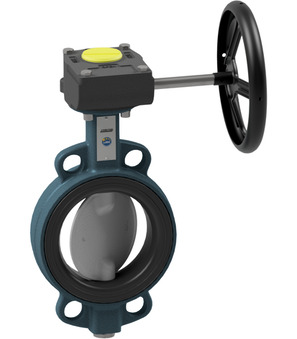

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4408; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 400mm; Length 102mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 92.022 Kg
Short Itemnumber: BUW6400DSVSG
https://www.stasto.ro/web/image/product.template/144603/image_1920?unique=24fee4a

butterfly valve with manual gear box; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 316; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 400mm; length 102mm

25.185,80 lei 25185.8 RON 25.185,80 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-400-DSVS-B x 1.0
    BUW6-400-DSVS-B
    Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4408; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 400mm; Length 102mm
    Add to Cart
    GB02-12/4012-01
    GB02-12/4012-01 x 1.0
    GB02-12/4012-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 2000Nm; Flange ISO5211 F12; Diameter/Key 40/12mm
